Adapter

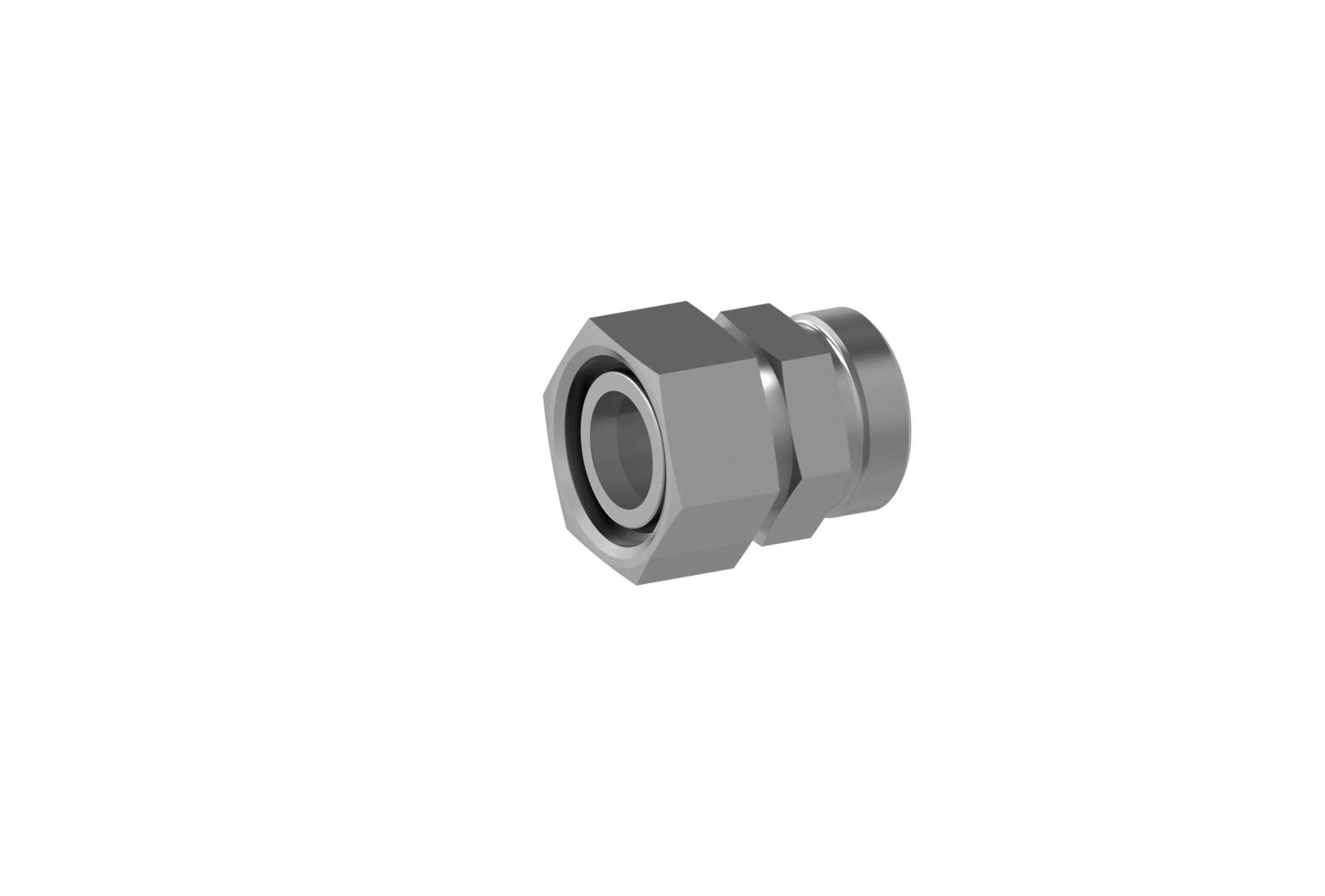

KOVO Gerade

Anschluss	einseitig: Dichtkopf 24° Außenkonus O-Ring-dichtend mit metrischer Mutter L / S-Reihe anderseitig: metrisches Außengewinde mit 24° Innenkonus und Rohranschluss L / S-Reihe
Werkstoff	Stahl
Oberfläche	galvanisch verzinkt
Hinweis	* Stiftmutterausführung
Zubehör	O-Ring DKOL/DKOS
Optionen	abweichende Längen auf Anfrage

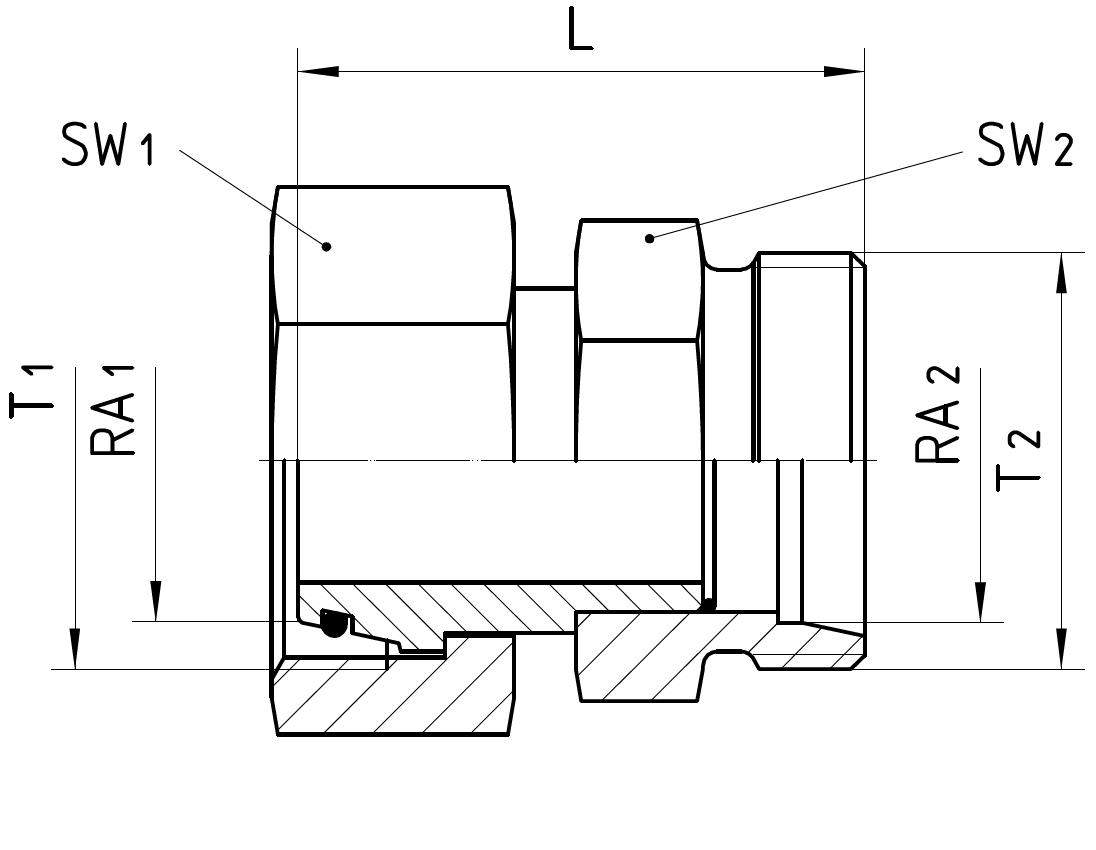

Bestell-Nr.	RA1	RA2	T1	T2	SW1 in mm	SW2 in mm	L±2 in mm	Hinweis
KOVO 6-L/ 6-L	6-L	6-L	M 12x1.5	M 12x1.5	14	12	33
KOVO 6-L/ 8-L	6-L	8-L	M 12x1.5	M 14x1.5	14	14	32
KOVO 6-L/10-L	6-L	10-L	M 12x1.5	M 16x1.5	14	17	34
KOVO 6-L/ 6-S	6-L	6-S	M 12x1.5	M 14x1.5	14	14	35
KOVO 6-L/ 8-S	6-L	8-S	M 12x1.5	M 16x1.5	14	17	35
KOVO 6-L/10-S	6-L	10-S	M 12x1.5	M 18x1.5	17	19	35
KOVO 6-S/ 6-L	6-S	6-L	M 14x1.5	M 12x1.5	17	12	31
KOVO 6-S/ 6-S	6-S	6-S	M 14x1.5	M 14x1.5	17	14	34
KOVO 6-S/ 8-S	6-S	8-S	M 14x1.5	M 16x1.5	17	17	34
KOVO 6-S/10-S	6-S	10-S	M 14x1.5	M 18x1.5	17	19	34
KOVO 8-L/ 8-L	8-L	8-L	M 14x1.5	M 14x1.5	17	14	34
KOVO 8-L/10-L	8-L	10-L	M 14x1.5	M 16x1.5	17	17	37
KOVO 8-L/12-L	8-L	12-L	M 14x1.5	M 18x1.5	17	19	36
KOVO 8-L/ 8-S	8-L	8-S	M 14x1.5	M 16x1.5	17	14	37
KOVO 8-L/10-S	8-L	10-S	M 14x1.5	M 18x1.5	17	19	37
KOVO 8-L/12-S	8-L	12-S	M 14x1.5	M 20x1.5	17	22	37
KOVO 8-S/ 8-L	8-S	8-L	M 16x1.5	M 14x1.5	19	14	35
KOVO 8-S/ 8-S	8-S	8-S	M 16x1.5	M 16x1.5	19	17	38
KOVO 8-S/10-S	8-S	10-S	M 16x1.5	M 18x1.5	19	19	38
KOVO 8-S/12-S	8-S	12-S	M 16x1.5	M 20x1.5	19	22	38
KOVO 10-L/10-L	10-L	10-L	M 16x1.5	M 16x1.5	19	17	36
KOVO 10-L/12-L	10-L	12-L	M 16x1.5	M 18x1.5	19	19	36
KOVO 10-L/15-L	10-L	15-L	M 16x1.5	M 22x1.5	19	22	38
KOVO 10-L/10-S	10-L	10-S	M 16x1.5	M 18x1.5	19	19	37
KOVO 10-L/12-S	10-L	12-S	M 16x1.5	M 20x1.5	19	22	37
KOVO 10-L/14-S	10-L	14-S	M 16x1.5	M 22x1.5	19	22	40
KOVO 10-L/16-S	10-L	16-S	M 16x1.5	M 24x1.5	19	27	41
KOVO 10-S/10-L	10-S	10-L	M 18x1.5	M 16x1.5	22	17	38
KOVO 10-S/10-S	10-S	10-S	M 18x1.5	M 18x1.5	22	19	39
KOVO 10-S/12-S	10-S	12-S	M 18x1.5	M 20x1.5	22	22	39
KOVO 10-S/14-S	10-S	14-S	M 18x1.5	M 22x1.5	22	22	42
KOVO 10-S/16-S	10-S	16-S	M 18x1.5	M 24x1.5	22	27	43
KOVO 12-L/12-L	12-L	12-L	M 18x1.5	M 18x1.5	22	19	36
KOVO 12-L/15-L	12-L	15-L	M 18x1.5	M 22x1.5	22	22	38
KOVO 12-L/18-L	12-L	18-L	M 18x1.5	M 26x1.5	22	27	39
KOVO 12-L/12-S	12-L	12-S	M 18x1.5	M 20x1.5	22	22	37
KOVO 12-L/14-S	12-L	14-S	M 18x1.5	M 22x1.5	22	22	40
KOVO 12-L/16-S	12-L	16-S	M 18x1.5	M 24x1.5	22	27	41
KOVO 12-S/12-L	12-S	12-L	M 20x1.5	M 18x1.5	22	19	40
KOVO 12-S/12-S	12-S	12-S	M 20x1.5	M 20x1.5	22	22	41
KOVO 12-S/14-S	12-S	14-S	M 20x1.5	M 22x1.5	24	22	44
KOVO 12-S/16-S	12-S	16-S	M 20x1.5	M 24x1.5	24	27	45
KOVO 12-S/20-S	12-S	20-S	M 20x1.5	M 30x2	24	30	48
KOVO 14-S/15-L	14-S	15-L	M 22x1.5	M 22x1.5	27	22	43
KOVO 14-S/18-L	14-S	18-L	M 22x1.5	M 26x1.5	27	27	44
KOVO 14-S/14-S	14-S	14-S	M 22x1.5	M 22x1.5	27	22	45
KOVO 14-S/16-S	14-S	16-S	M 22x1.5	M 24x1.5	27	27	46
KOVO 14-S/20-S	14-S	20-S	M 22x1.5	M 30x2	27	30	49
KOVO 15-L/15-L	15-L	15-L	M 22x1.5	M 22x1.5	27	22	42
KOVO 15-L/18-L	15-L	18-L	M 22x1.5	M 26x1.5	27	27	42
KOVO 15-L/22-L	15-L	22-L	M 22x1.5	M 30x2	27	30	45
KOVO 15-L/16-S	15-L	16-S	M 22x1.5	M 24x1.5	27	27	45
KOVO 15-L/20-S	15-L	20-S	M 22x1.5	M 30x2	27	30	45
KOVO 16-S/18-L	16-S	18-L	M 24x1.5	M 26x1.5	30	27	45
KOVO 16-S/22-L	16-S	22-L	M 24x1.5	M 30x2	30	30	48
KOVO 16-S/16-S	16-S	16-S	M 24x1.5	M 24x1.5	30	24	47
KOVO 16-S/20-S	16-S	20-S	M 24x1.5	M 30x2	30	30	50
KOVO 16-S/25-S	16-S	25-S	M 24x1.5	M 36x2	30	36	54
KOVO 18-L/18-L	18-L	18-L	M 26x1.5	M 26x1.5	32	27	41
KOVO 18-L/22-L	18-L	22-L	M 26x1.5	M 30x2	32	30	44
KOVO 18-L/28-L	18-L	28-L	M 26x1.5	M 36x2	32	36	45
KOVO 18-L/20-S	18-L	20-S	M 26x1.5	M 30x2	32	30	46
KOVO 18-L/25-S	18-L	25-S	M 26x1.5	M 36x2	32	36	50
KOVO 20-S/22-L	20-S	22-L	M 30x2	M 30x2	36	30	55
KOVO 20-S/28-L	20-S	28-L	M 30x2	M 36x2	36	36	56
KOVO 20-S/20-S	20-S	20-S	M 30x2	M 30x2	36	30	57
KOVO 20-S/25-S	20-S	25-S	M 30x2	M 36x2	36	36	61
KOVO 20-S/30-S	20-S	30-S	M 30x2	M 42x2	36	46	63
KOVO 22-L/22-L	22-L	22-L	M 30x2	M 30x2	36	30	48
KOVO 22-L/28-L	22-L	28-l	M 30x2	M 36x2	36	36	49
KOVO 22-L/35-L	22-L	35-L	M 30x2	M 45x2	36	46	52
KOVO 22-L/25-S	22-L	25-S	M 30x2	M 36x2	36	36	54
KOVO 22-L/30-S	22-L	30-S	M 30x2	M 42x2	36	46	56
KOVO 25-S/28-L	25-S	28-L	M 36x2	M 36x2	46	36	53	*
KOVO 25-S/35-L	25-S	35-L	M 36x2	M 45x2	46	46	56	*
KOVO 25-S/25-S	25-S	25-S	M 36x2	M 36x2	46	36	58	*
KOVO 25-S/30-S	25-S	30-S	M 36x2	M 42x2	46	46	60	*
KOVO 25-S/38-S	25-S	38-S	M 36x2	M 52x2	46	55	65	*
KOVO 28-L/28-L	28-L	28-L	M 36x2	M 36x2	41	36	49	*
KOVO 28-L/35-L	28-L	35-L	M 36x2	M 45x2	41	46	52	*
KOVO 28-L/42-L	28-L	42-L	M 36x2	M 52x2	41	55	55
KOVO 28-L/30-S	28-L	30-S	M 36x2	M 42x2	41	46	56
KOVO 28-L/38-S	28-L	38-S	M 36x2	M 52x2	41	55	61
KOVO 30-S/35-L	30-S	35-L	M 42x2	M 45x2	50	46	62
KOVO 30-S/42-L	30-S	42-L	M 42x2	M 52x2	50	55	65
KOVO 30-S/30-S	30-S	30-S	M 42x2	M 42x2	50	46	66
KOVO 30-S/38-S	30-S	38-S	M 42x2	M 52x2	50	55	71	*
KOVO 35-L/35-L	35-L	35-L	M 45x2	M 45x2	50	46	55
KOVO 35-L/42-L	35-L	42-L	M45x2	M 52x2	50	55	58
KOVO 35-L/38-S	35-L	38-S	M 45x2	M 52x2	50	55	64
KOVO 38-S/42-L	38-S	42-L	M 52x2	M 52x2	60	55	70
KOVO 38-S/38-S	38-S	38-S	M 52x2	M 52x2	60	55	73
KOVO 42-L/42-L	42-L	42-L	M 52x2	M 52x2	60	55	68	*
