Adapters

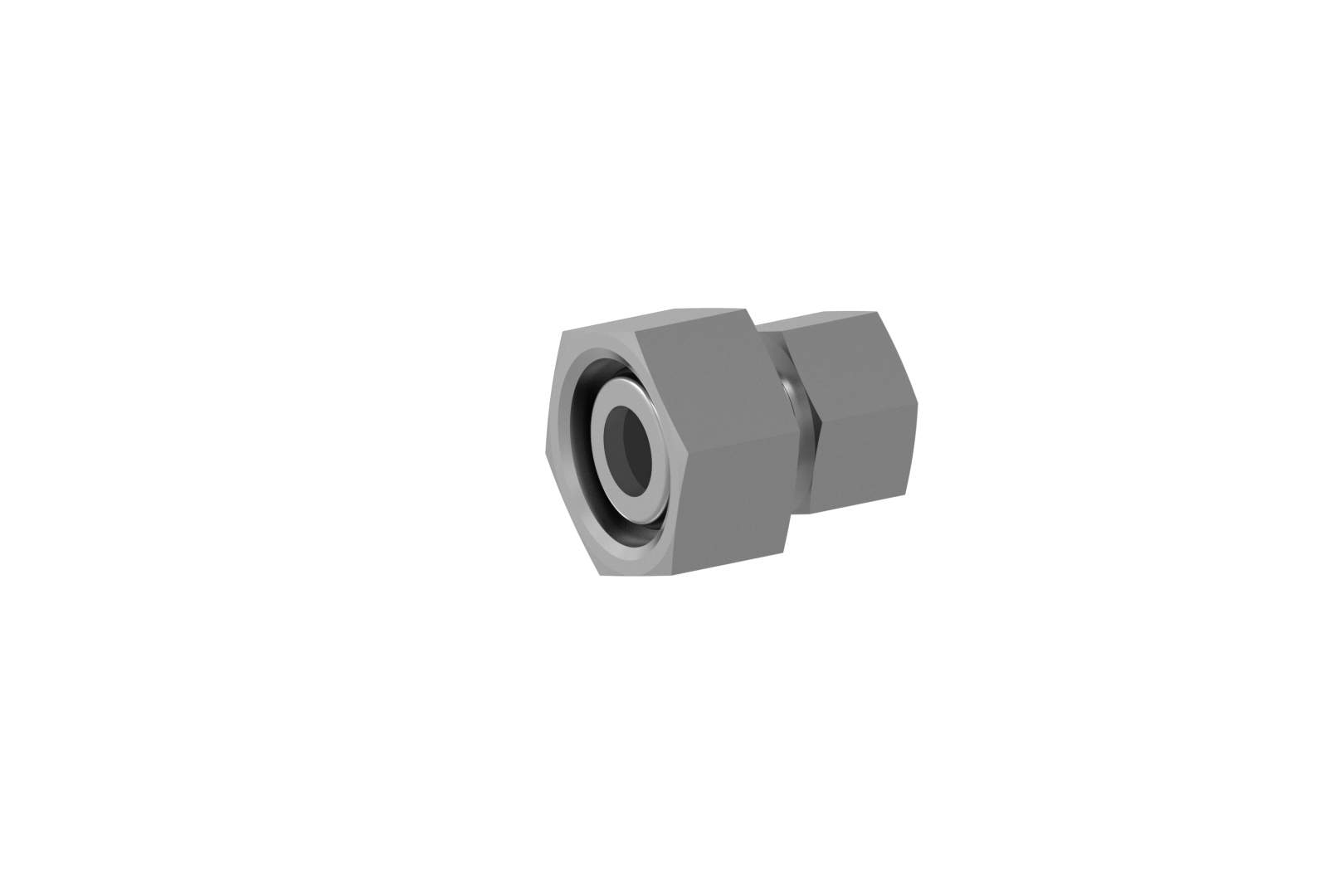

GVO straight

connection	both sides: 24° external cone O-ring sealing with metric nut L/S series
Material	Steel
Surface protection	Zinc-electroplated
Accessories	3437309
Optionen	deviating angle and dimensions on request

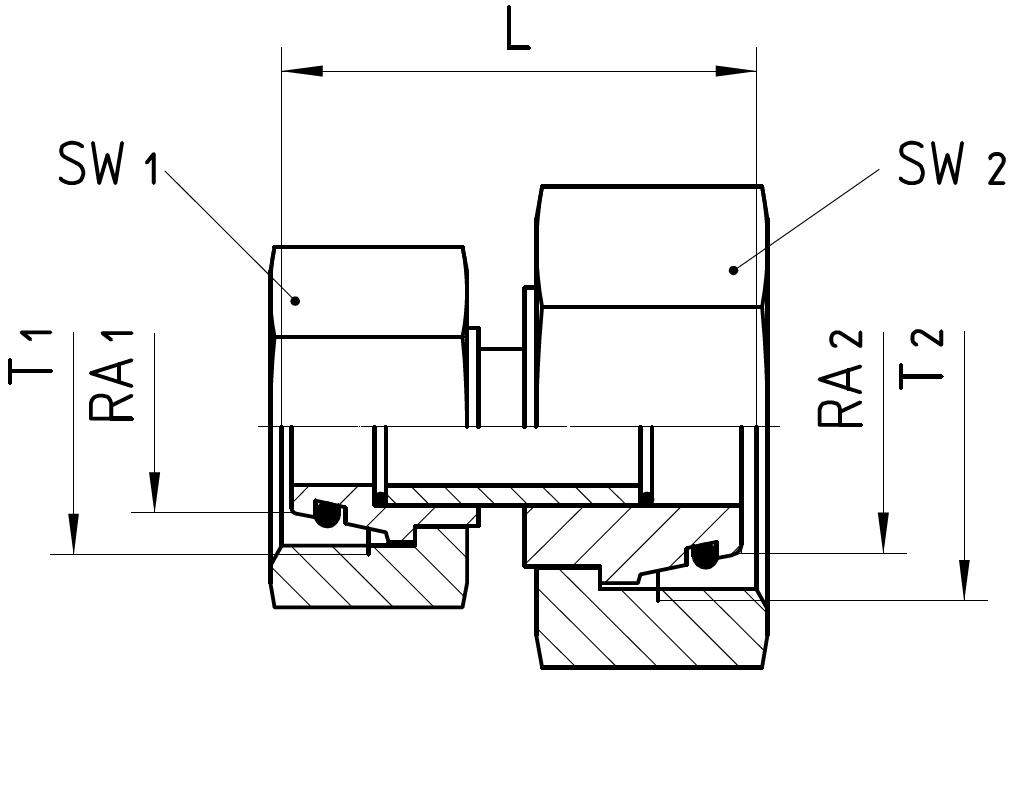

Order no.	RA1	RA2	T1	T2	SW1 in mm	SW2 in mm	L±2 in mm
GVO 6-L/ 6-L	6-L	6-L	M 12x1.5	M 12x1.5	14	14	28
GVO 6-L/ 8-L	6-L	8-L	M 12x1.5	M 14x1.5	14	17	31
GVO 6-L/10-L	6-L	10-L	M 12x1.5	M 16x1.5	14	19	32
GVO 6-L/ 6-S	6-L	6-S	M 12x1.5	M 14x1.5	14	17	28
GVO 6-L/ 8-S	6-L	8-S	M 12x1.5	M 16x1.5	14	19	31
GVO 6-L/10-S	6-L	10-S	M 12x1.5	M 18x1.5	14	22	32
GVO 6-S/ 6-S	6-S	6-S	M 14x1.5	M 14x1.5	17	17	28
GVO 6-S/ 8-S	6-S	8-S	M 14x1.5	M 16x1.5	17	19	31
GVO 6-S/10-S	6-S	10-S	M 14x1.5	M 18x1.5	17	22	32
GVO 8-L/ 8-L	8-L	8-L	M 14x1.5	M 14x1.5	17	17	32
GVO 8-L/10-L	8-L	10-L	M 14x1.5	M 16x1.5	17	19	34
GVO 8-L/12-L	8-L	12-L	M 14x1.5	M 18x1.5	17	22	34
GVO 8-L/ 8-S	8-L	8-S	M 14x1.5	M 16x1.5	17	19	33
GVO 8-L/10-S	8-L	10-S	M 14x1.5	M 18x1.5	17	22	34
GVO 8-L/12-S	8-L	12-S	M 14x1.5	M 20x1.5	17	24	33
GVO 8-S/ 8-S	8-S	8-S	M 16x1.5	M 16x1.5	19	19	33
GVO 8-S/10-S	8-S	10-S	M 16x1.5	M 18x1.5	19	22	35
GVO 8-S/12-S	8-S	12-S	M 16x1.5	M 20x1.5	19	24	33
GVO 10-L/10-L	10-L	10-L	M 16x1.5	M 16x1.5	19	19	39
GVO 10-L/12-L	10-L	12-L	M 16x1.5	M 18x1.5	19	22	38
GVO 10-L/15-L	10-L	15-L	M 16x1.5	M 22x1.5	19	27	37
GVO 10-L/10-S	10-L	10-S	M 16x1.5	M 18x1.5	19	22	39
GVO 10-L/12-S	10-L	12-S	M 16x1.5	M 20x1.5	19	24	37
GVO 10-L/14-S	10-L	14-S	M 16x1.5	M 22x1.5	19	27	39
GVO 10-L/16-S	10-L	16-S	M 16x1.5	M 24x1.5	19	30	39
GVO 10-S/10-S	10-S	10-S	M 18x1.5	M 18x1.5	22	22	39
GVO 10-S/12-S	10-S	12-S	M 18x1.5	M 20x1.5	22	24	37
GVO 10-S/14-S	10-S	14-S	M 18x1.5	M 22x1.5	22	27	39
GVO 12-L/12-L	12-L	12-L	M 18x1.5	M 18x1.5	22	22	37
GVO 12-L/15-L	12-L	15-L	M 18x1.5	M 22x1.5	22	27	36
GVO 12-L/18-L	12-L	18-L	M 18x1.5	M 26x1.5	22	32	36
GVO 12-L/12-S	12-L	12-S	M 18x1.5	M 20x1.5	22	24	37
GVO 12-L/14-S	12-L	14-S	M 18x1.5	M 22x1.5	22	27	38
GVO 12-L/16-S	12-L	16-S	M 18x1.5	M 24x1.5	22	30	38
GVO 12-L/20-S	12-L	20-S	M 18x1.5	M 30x2,0	22	36	41
GVO 12-S/12-S	12-S	12-S	M 20x1.5	M 20x1.5	24	24	36
GVO 12-S/14-S	12-S	14-S	M 20x1.5	M 22x1.5	24	27	38
GVO 12-S/16-S	12-S	16-S	M 20x1.5	M 24x1.5	24	30	38
GVO 14-S/15-L	14-S	15-L	M 22x1.5	M 22x1.5	27	27	37
GVO 14-S/18-L	14-S	18-L	M 22x1.5	M 26x1.5	27	32	37
GVO 14-S/14-S	14-S	14-S	M 22x1.5	M 22x1.5	27	27	39
GVO 14-S/16-S	14-S	16-S	M 22x1.5	M 24x1.5	27	30	39
GVO 14-S/20-S	14-S	20-S	M 22x1.5	M 30x2,0	27	36	42
GVO 15-L/15-L	15-L	15-L	M 22x1.5	M 22x1.5	27	27	39
GVO 15-L/18-L	15-L	18-L	M 22x1.5	M 26x1.5	27	32	39
GVO 15-L/22-L	15-L	22-L	M 22x1.5	M 30x2,0	27	36	39
GVO 15-L/16-S	15-L	16-S	M 22x1.5	M 24x1.5	27	30	41
GVO 15-L/20-S	15-L	20-S	M 22x1.5	M 30x2,0	27	36	44
GVO 15-L/25-S	15-L	25-S	M 22x1.5	M 36x2,0	27	46	44
GVO 16-S/18-L	16-S	18-L	M 24x1.5	M 26x1.5	30	36	41
GVO 16-S/22-L	16-S	22-L	M 24x1.5	M 30x2,0	30	30	40
GVO 16-S/16-S	16-S	16-S	M 24x1.5	M 24x1.5	30	36	42
GVO 16-S/20-S	16-S	20-S	M 24x1.5	M 30x2,0	30	46	45
GVO 16-S/25-S	16-S	25-S	M 24x1.5	M 36x2,0	30	32	46
GVO 18-L/18-L	18-L	18-L	M 26x1.5	M 26x1.5	32	36	40
GVO 18-L/22-L	18-L	22-L	M 26x1.5	M 30x2,0	32	41	41
GVO 18-L/28-L	18-L	28-L	M 26x1.5	M 36x2,0	32	36	42
GVO 18-L/20-S	18-L	20-S	M 26x1.5	M 30x2,0	32	46	45
GVO 18-L/25-S	18-L	25-S	M 26x1.5	M 36x2,0	32	50	47
GVO 18-L/30-S	18-L	30-S	M 26x1.5	M 42x2,0	32	50	45
GVO 20-S/22-L	20-S	22-L	M 30x2,0	M 30x2,0	36	36	46
GVO 20-S/28-L	20-S	28-L	M 30x2,0	M 36x2,0	36	41	46
GVO 20-S/20-S	20-S	20-S	M 30x2,0	M 30x2,0	36	36	52
GVO 20-S/25-S	20-S	25-S	M 30x2,0	M 36x2,0	36	46	51
GVO 20-S/30-S	20-S	30-S	M 30x2,0	M 42x2,0	36	50	52
GVO 22-L/22-L	22-L	22-L	M 30x2,0	M 30x2,0	36	36	43
GVO 22-L/28-L	22-L	28-l	M 30x2,0	M 36x2,0	36	41	44
GVO 22-L/35-L	22-L	35-L	M 30x2,0	M 45x2,0	36	50	51
GVO 22-L/25-S	22-L	25-S	M 30x2,0	M 36x2,0	36	46	48
GVO 22-L/30-S	22-L	30-S	M 30x2,0	M 42x2,0	36	50	48
GVO 22-L/38-S	22-L	38-S	M 30x2,0	M 52x2,0	36	60	55
GVO 25-S/28-L	25-S	28-L	M 36x2,0	M 36x2,0	46	41	49
GVO 25-S/35-L	25-S	35-L	M 36x2,0	M 45x2,0	46	50	64
GVO 25-S/25-S	25-S	25-S	M 36x2,0	M 36x2,0	46	46	52
GVO 25-S/30-S	25-S	30-S	M 36x2,0	M 42x2,0	46	50	52
GVO 25-S/38-S	25-S	38-S	M 36x2,0	M 52x2,0	46	60	59
GVO 28-L/28-L	28-L	28-L	M 36x2,0	M 36x2,0	41	41	44
GVO 28-L/35-L	28-L	35-L	M 36x2,0	M 45x2,0	41	50	46
GVO 28-L/42-L	28-L	42-L	M 36x2,0	M 52x2,0	41	60	51
GVO 28-L/30-S	28-L	30-S	M 36x2,0	M 42x2,0	41	50	46
GVO 28-L/38-S	28-L	38-S	M 36x2,0	M 52x2,0	41	60	54
GVO 30-S/35-L	30-S	35-L	M 42x2,0	M 45x2,0	50	50	53
GVO 30-S/42-L	30-S	42-L	M 42x2,0	M 52x2,0	50	60	53
GVO 30-S/30-S	30-S	30-S	M 42x2,0	M 42x2,0	50	50	54
GVO 30-S/38-S	30-S	38-S	M 42x2,0	M 52x2,0	50	60	57
GVO 35-L/35-L	35-L	35-L	M 45x2,0	M 45x2,0	50	50	53
GVO 35-L/42-L	35-L	42-L	M 45x2,0	M 52x2,0	50	60	54
GVO 35-L/38-S	35-L	38-S	M 45x2,0	M 52x2,0	50	60	58
GVO 38-S/42-L	38-S	42-L	M 52x2,0	M 52x2,0	60	60	54
GVO 38-S/38-S	38-S	38-S	M 52x2,0	M 52x2,0	60	60	57
GVO 42-L/42-L	42-L	42-L	M 52x2,0	M 52x2,0	60	60	51
GVO 50-S/50-S	50-S	50-S	M 68x2,0	M 68x2,0	80	80	73
