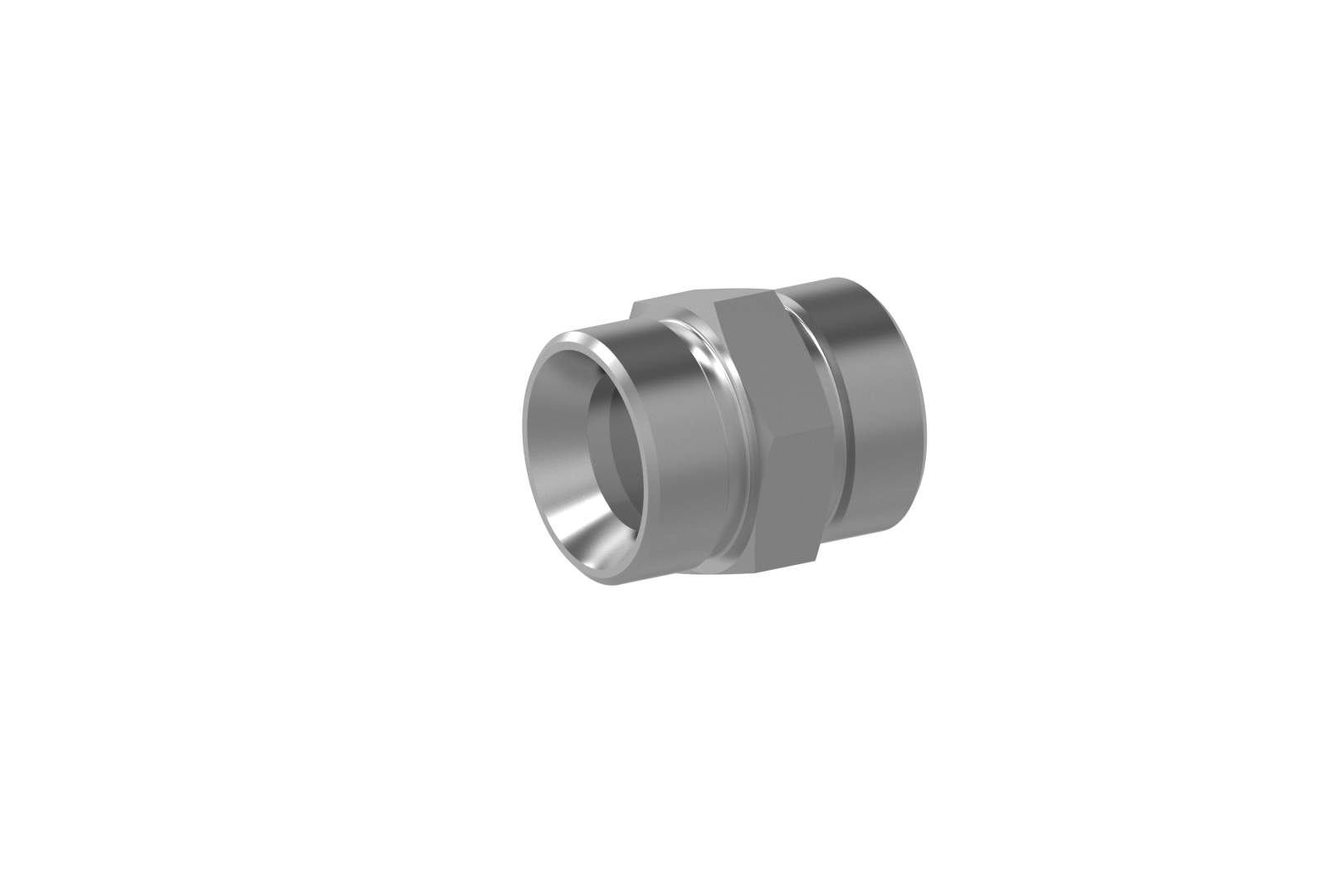

| Connection | both sides: external thread with 60° internal cone LL series |
| Standard | DIN 7631 |
| Application | for suction and return lines |
| Material | Steel |
| Surface protection | Zinc-electroplated |

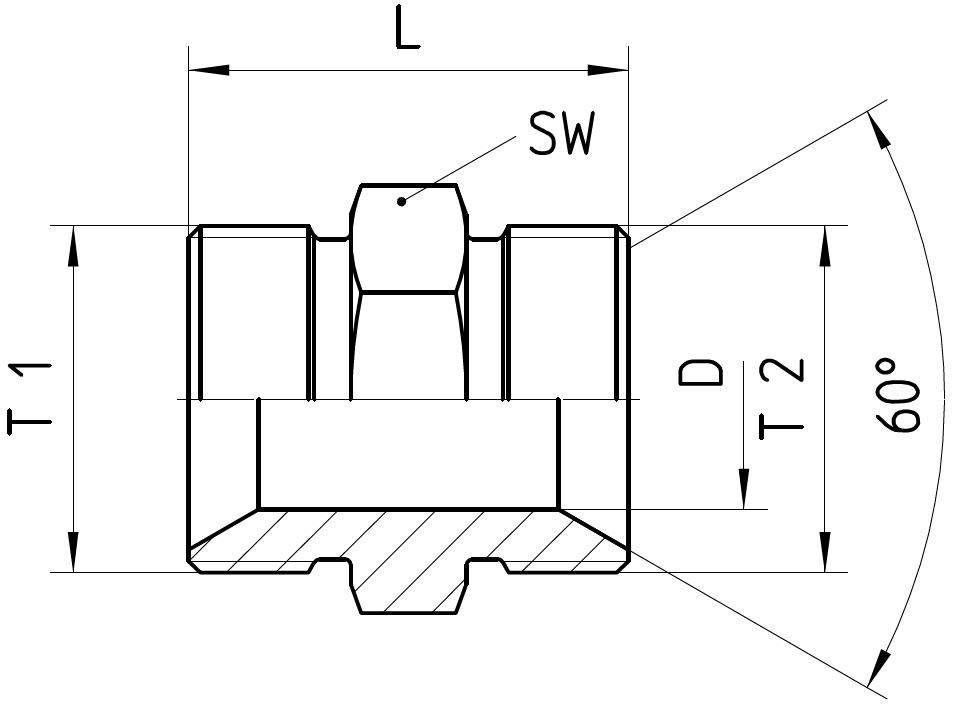

| Order no. | DN in mm | T1 | T2 | SW in mm | D in mm | L ±3 in mm |
|---|---|---|---|---|---|---|
| G M 30x1.5/M 30x1.5 | 20 | M 30x1.5 | M 30x1.5 | 32 | 19 | 38 |
| G M 38x1.5/M 38x1.5 | 25 | M 38x1.5 | M 38x1.5 | 41 | 25 | 45 |
| G M 45x1.5/M 45x1.5 | 32 | M 45x1.5 | M 45x1.5 | 46 | 32 | 50 |
| G M 52x1.5/M 52x1.5 | 38 | M 52x1.5 | M 52x1.5 | 55 | 39 | 50 |
| G M 65x2/M 65x2 | 51 | M 65x2.0 | M 65x2.0 | 75 | 50 | 52 |
| G M 78x2/M 78x2 | 60 | M 78x2.0 | M 78x2.0 | 90 | 56 | 52 |
Product information last updated on 24.05.2022 14:32:49
