| Connection | metric external thread with 60° internal cone LL series |
| Standard | DIN 7631 / DIN 3852 |
| Application | for suction and return lines |
| Material | Steel |
| Surface protection | Zinc-electroplated |

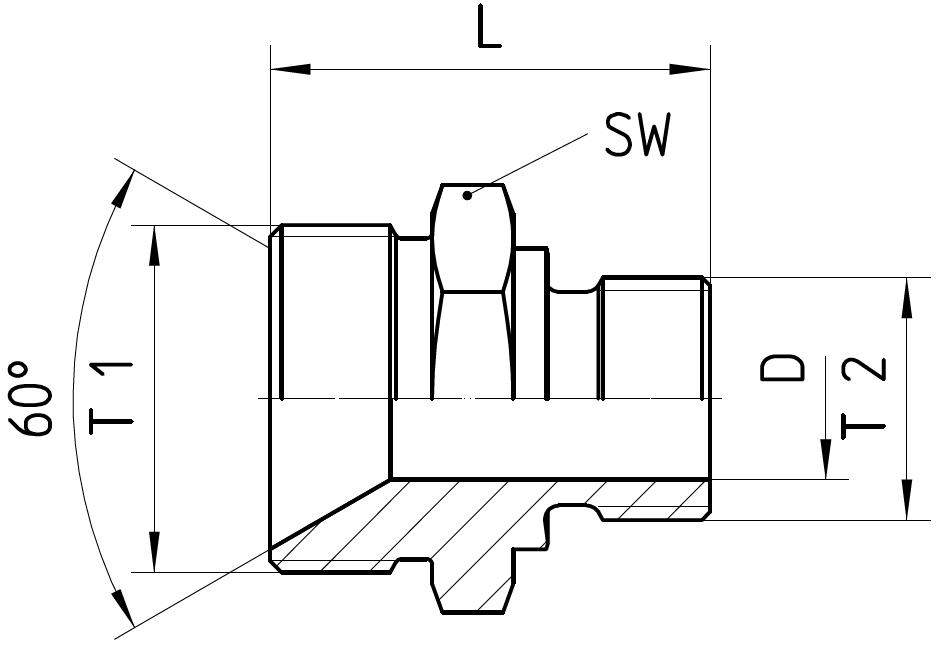

| Order no. | DN in mm | T1 | T2 | SW in mm | D in mm | L ±3 in mm |
|---|---|---|---|---|---|---|
| GE M 52x1.5 G 1 1/4 | 38 | M 52x1.5 | G 1 1/4 | 55 | 30 | 54 |
| GE M 52x1.5 G 1 1/2 | 38 | M 52x1.5 | G 1 1/2 | 55 | 39 | 56 |
| GE M 65x2 G 1 1/2 | 51 | M 65x2,0 | G 1 1/2 | 75 | 39 | 57 |
| GE M 65x2 G 2 | 51 | M 65x2,0 | G 2 | 75 | 50 | 57 |
| GE M 78x2 G 2 | 60 | M 78x2,0 | G 2 | 90 | 50 | 57 |
| GE M 78x2 G 2 1/2 | 60 | M 78x2,0 | G 2 1/2 | 90 | 56 | 59 |
