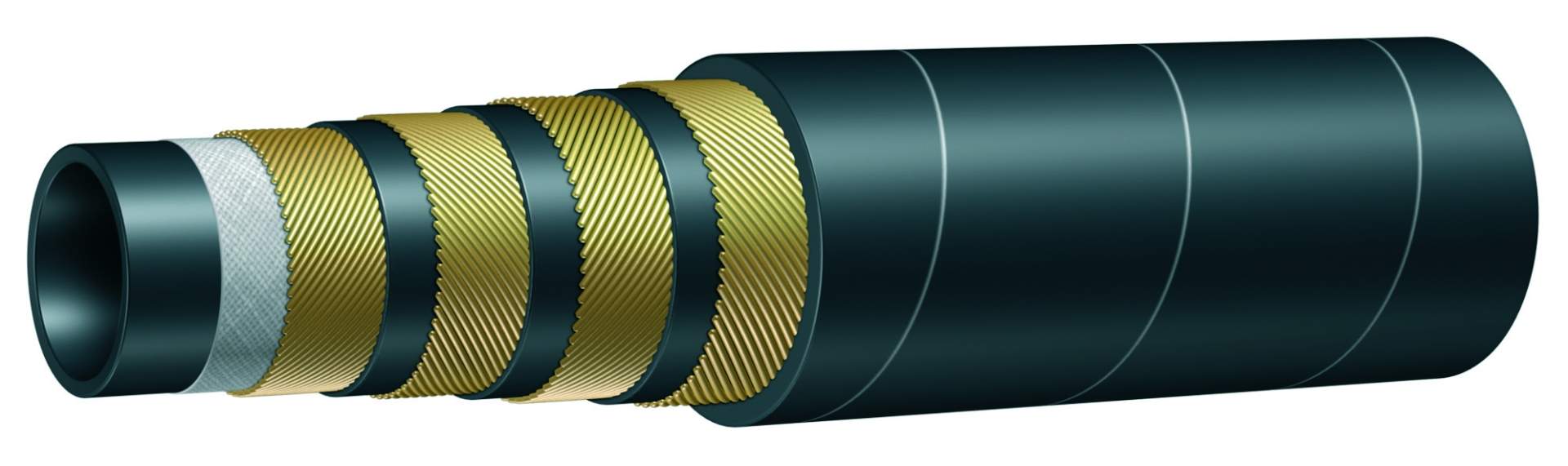

| Tube | oil resistant syntetic rubber |
| Reinforcement | 4 high tensile steel spirals |
| Cover | synthetic rubber with high temperature, ozone and abrasion resistance |
| Temperature | -40°C to +100°C |
| Standard | DIN EN 856; SAE 100 R9R |
| Highly abrasion-resistant cover: |
- delivery is possible with highly abrasion-resistant cover - test accoridng to EN ISO 6945 after 1 million cycles: no measurable abrasion |
| your advantage: |
- no hose protection necessary - hose can be used for application under oil |
|
Do you have need for hose lines with highly abrasion-resistant cover? We are looking forward to your inquiry. |
| Order no. | DN in mm | internal Ø in mm | external Ø in mm | reinforcement Ø in mm | working pressure in bar | burst pressure in bar | min.bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|---|
| 40-04 | 6 | 6,4 | 17,9 | 14,7 | 450 | 1800 | 150 | 0,60 |
| 40-06 | 10 | 9,5 | 21,4 | 17,5 | 445 | 1780 | 180 | 0,80 |
| 40-08 | 12 | 12,7 | 24,6 | 20,2 | 415 | 1660 | 230 | 0,95 |
| 40-10 | 16 | 15,9 | 28,2 | 23,8 | 350 | 1400 | 250 | 1,10 |
Product information last updated on 24.05.2022 14:32:49
Are you interested in this product? Our contact partners are happy to answer any questions you may have about our products.
Do you require special sizes, different angles or complete customisation? We provide solutions tailored to your specific requirements.
