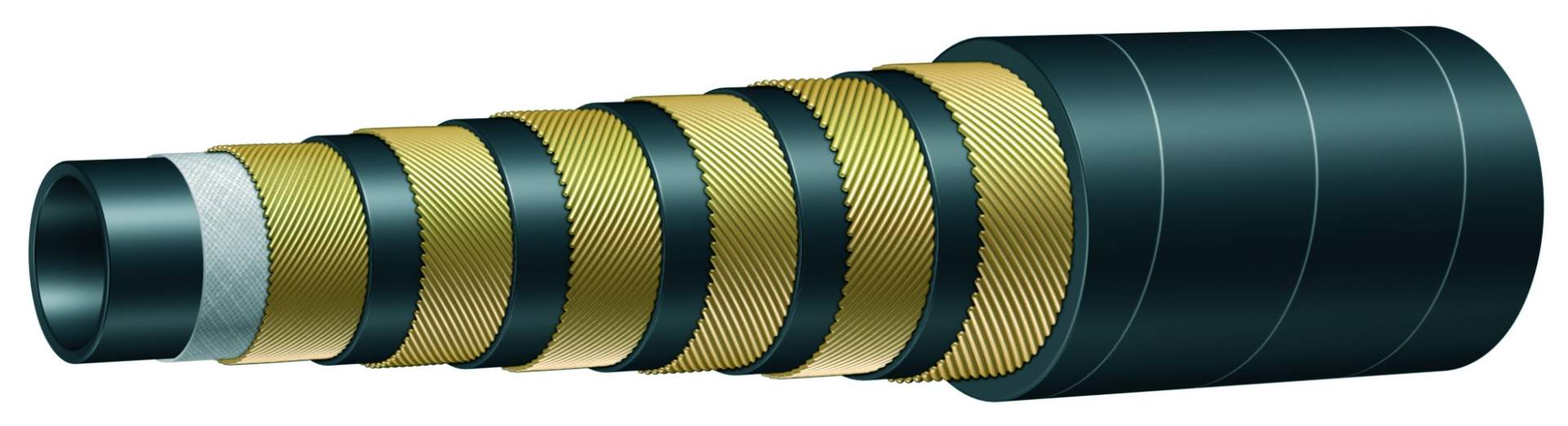

| Tube | oil resistant syntetic rubber |
| Reinforcement | 4 high tensile steel spirals up to DN 32, DN 40 with 6 spirals |
| Covering | synthetic rubber with high temperature, ozone and abrasion resistance |
| Temperature | -40°C to +120°C |
| Standard | SAE 100 R15 |
| Order no. | DN in mm | internal Ø in mm | external Ø in mm | reinforcement Ø in mm | working pressure in bar | burst pressure in bar | min.bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|---|
| 44-12 | 19 | 19,0 | 32,0 | 28,2 | 420 | 1680 | 280 | 1,55 |
| 86-16 | 25 | 25,4 | 38,4 | 35,1 | 420 | 1680 | 330 | 2,15 |
| 86-20 | 31 | 31,8 | 50,0 | 49,3 | 420 | 1680 | 445 | 3,98 |
| 86-24 | 38 | 38,1 | 57,3 | 54,0 | 420 | 1680 | 530 | 5,00 |
Product information last updated on 24.05.2022 14:32:49
