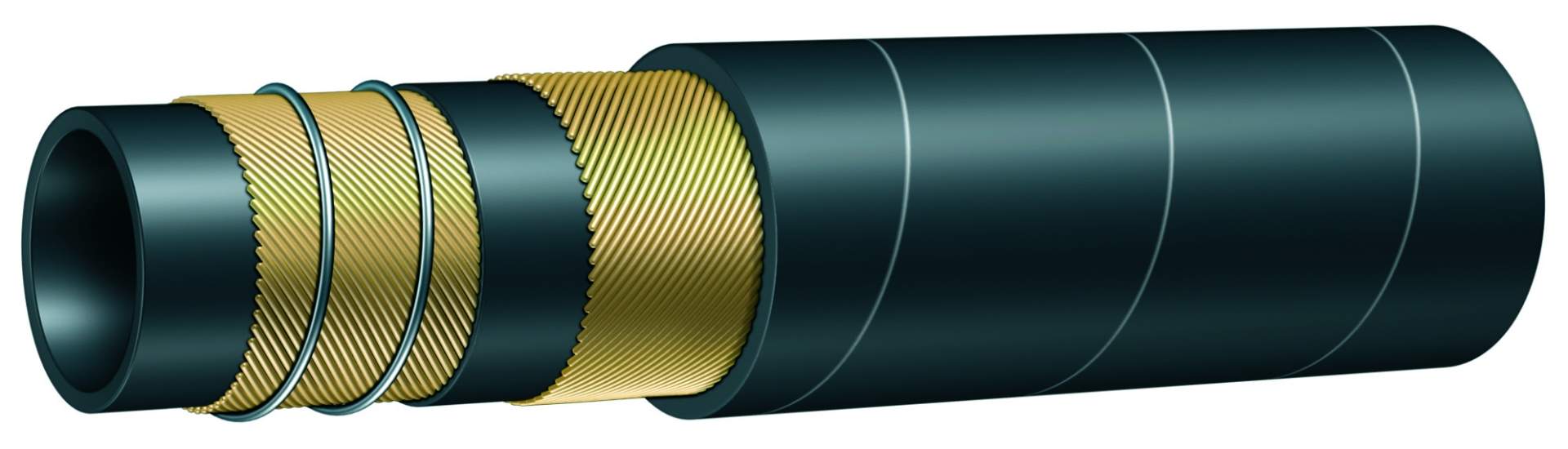

| Tube | NBR smooth |
| Reinforcement | Texil layers, 1spring steel spiral |
| Cover | CR - Quality (oil- and weather resistant) |
| Temperature | -40°C up to 100°C |
| Order no. | DN in mm | inch | internal Ø in mm | external Ø in mm | negative pressure in bar | working pressure in bar | burst pressure in bar | min.bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|---|---|
| 15-24 | 38 | 1 1/2 | 38,1 | 53 | 0,8 | 25 | 75 | 255 | 1,540 |
| 15-32 | 51 | 2 | 50,9 | 67 | 0,8 | 25 | 75 | 300 | 2,515 |
| 15-40 | 63 | 2 1/2 | 64,0 | 82 | 0,8 | 25 | 75 | 420 | 3,080 |
| 15-48 | 76 | 3 | 76,5 | 95 | 0,8 | 25 | 75 | 530 | 4,270 |
| 15-64 | 102 | 4 | 102 | 125 | 0,8 | 25 | 75 | 770 | 6,000 |
Product information last updated on 24.05.2022 14:32:49
