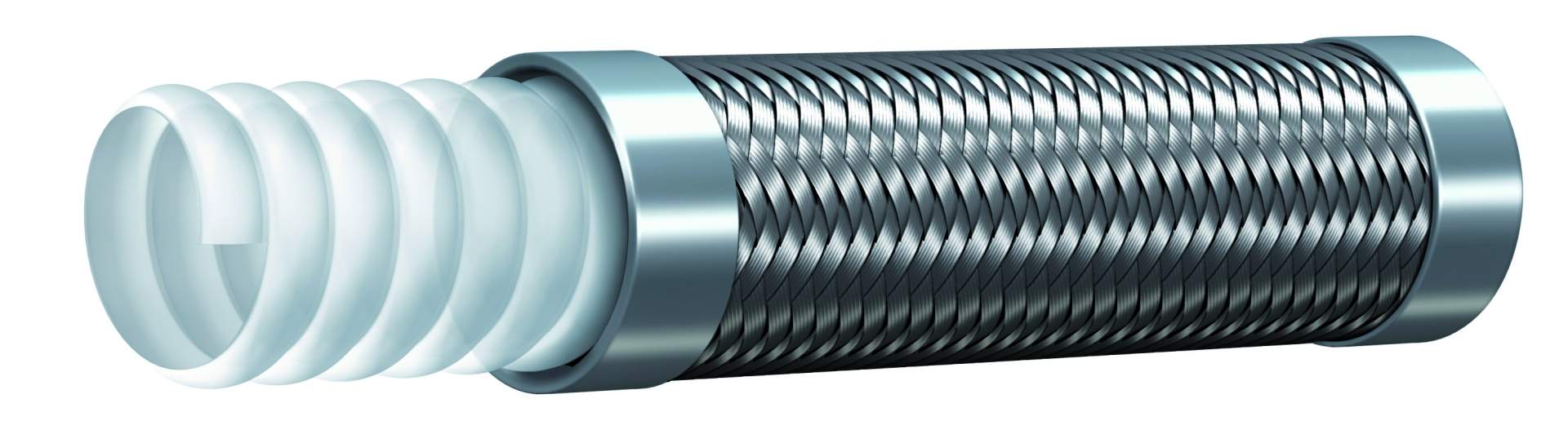

| Tube | flach gewellt |
| Reinforcement | Stainless steel braid AISI 304 |
| Temperature | -70°C to +260°C |
| Order no. | DN in mm | internal Ø min/max in mm | external Ø min/max in mm | working pressure at 20º in bar | burst pressure at 20º in bar | min. bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|
| R272-04 | 6 | 6,0 / 6,5 | 9,1 / 9,7 | 172 | 517 | 20 | 0,177 |
| R272-05 | 8 | 7,8 / 8,3 | 12,2 / 12,7 | 100 | 400 | 25 | 0,195 |
| R272-06 | 10 | 9,0 / 10,0 | 13,0 / 14,0 | 138 | 414 | 25 | 0,212 |
| R272-08 | 12 | 12,5 / 13,0 | 18,2 / 19,2 | 103 | 310 | 25 | 0,303 |
| R272-10 | 16 | 15,4 / 16,4 | 21,6 / 22,6 | 83 | 248 | 55 | 0,631 |
| R272-12 | 20 | 18,5 / 19,6 | 24,0 / 25,3 | 69 | 207 | 65 | 0,430 |
| R272-16 | 25 | 32,1 / 33,7 | 32,1 / 33,7 | 46 | 138 | 90 | 0,653 |
| R272-20 | 32 | 32,0 / 32,5 | 40,2 / 41,2 | 34 | 103 | 125 | 0,750 |
| R272-24 | 40 | 39,1 / 39,6 | 49,0 / 49,5 | 30 | 90 | 160 | 0,800 |
| R272-32 | 50 | 49,9 / 50,9 | 59,2 / 60,2 | 23 | 70 | 200 | 0,950 |
Product information last updated on 24.05.2022 14:32:49
