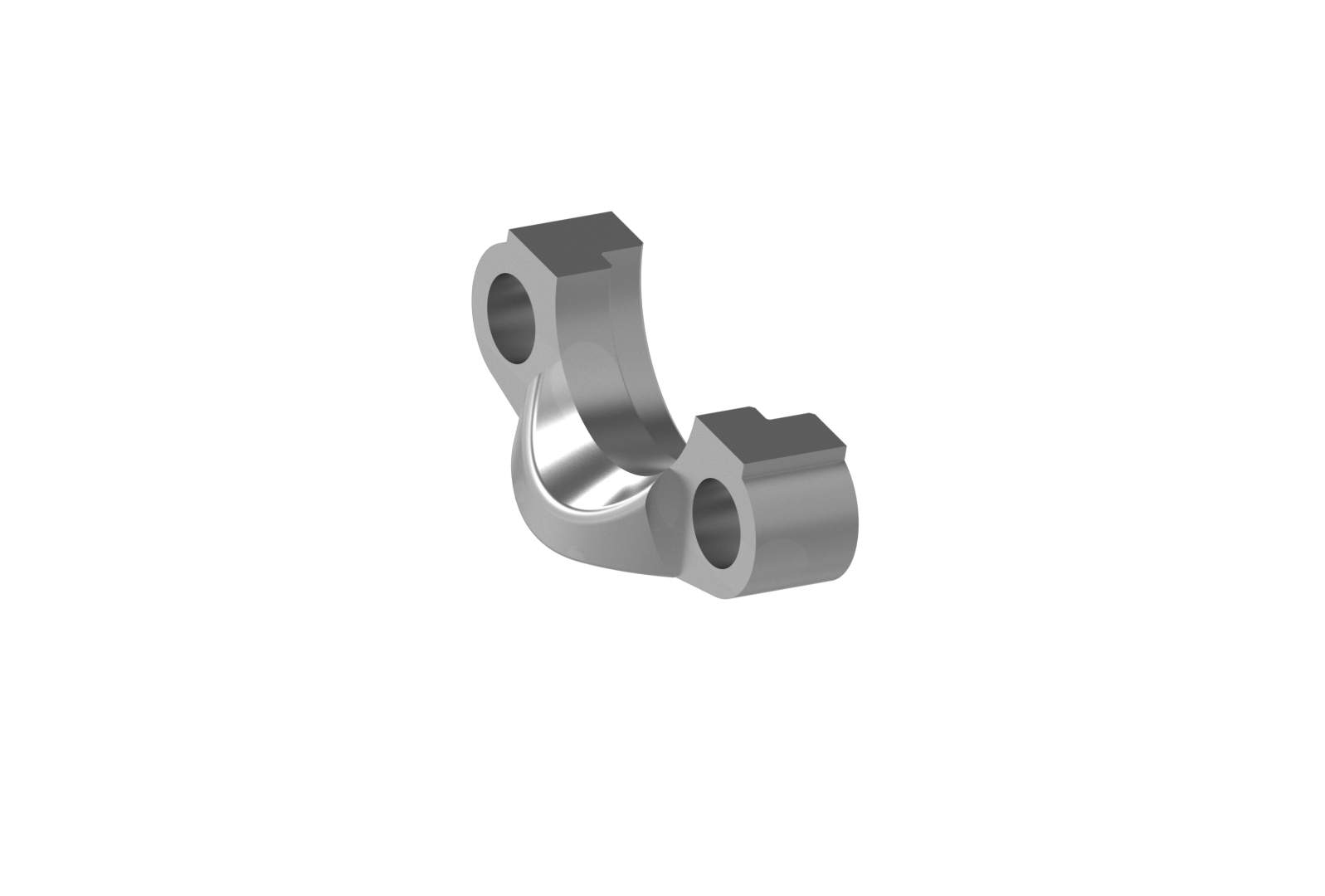

| Material | Steel |
| Surface protection | Zinc-electroplated |
| Order no. | old Order no. | SAE-size in inch | A in mm | G in mm | B in mm | C in mm | D in mm | E in mm | F in mm | for bolt UNC |
|---|---|---|---|---|---|---|---|---|---|---|
| 481-001 | 481- 8 | 1/2 | 32,5 | 24,6 | 9,2 | 40,5 | 22 | 16 | 8,8 | M 8x30 |
| 481-003 | 481-12 | 3/4 | 42,1 | 32,5 | 11,9 | 50,8 | 28 | 19 | 11,0 | M 10x35 |
| 481-005 | 481-16 | 1 | 48,4 | 38,9 | 13,9 | 57,2 | 33 | 24 | 13,0 | M 12x45 |
| 481-007 | 481-16-I | 1 | 48,4 | 38,9 | 13,9 | 57,2 | 33 | 24 | 12,0 | (7/16 - 1 3/4) |
| 481-008 | 481-20 | 1 1/4 | 54,8 | 44,5 | 15,9 | 66,7 | 38 | 27 | 15,0 | M 14x50 |
| 481-010 | 481-20-I | 1 1/4 | 54,8 | 44,5 | 15,9 | 66,7 | 38 | 27 | 13,5 | (1/2 - 1 3/4) |
| 481-011 | 481-24 | 1 1/2 | 64,3 | 51,6 | 18,3 | 79,4 | 43 | 30 | 17,0 | M 16x55 |
| 481-013 | 481-32 | 2 | 80,2 | 67,6 | 22,2 | 96,8 | 52 | 37 | 21,0 | M 20x65 |
Product information last updated on 24.05.2022 14:32:49
