| Connection | Pipe connection for cutting ring coupling S series |
| Standard | ISO 8434-1 |
| Application | TE / SN / SC / SN-K / PTFE flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

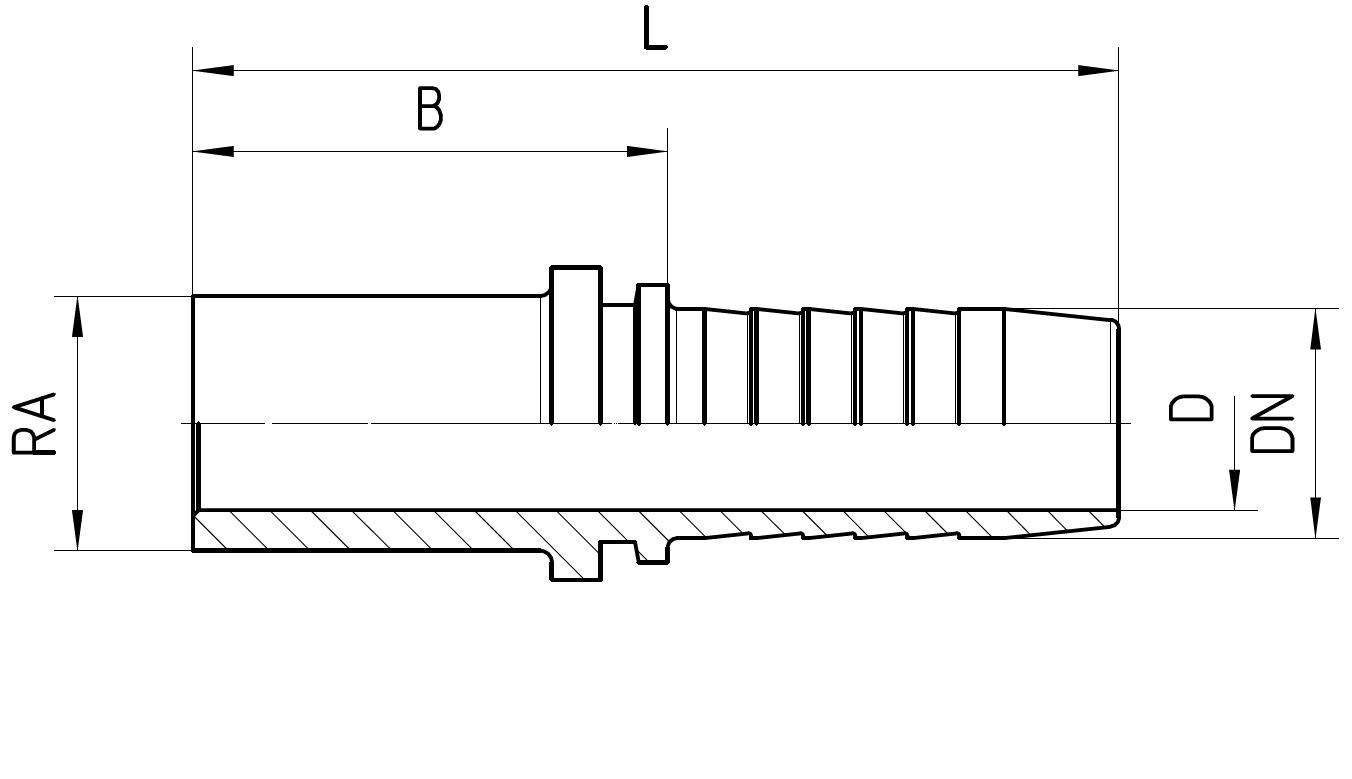

| Order no. | DN in mm | RA | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|
| 1.123-02-04 | 06 | 6S | 3,5 | 34 | 61 |
| 1.123-03-04 | 06 | 8S | 4,0 | 34 | 61 |
| 1.123-04-04 | 06 | 10S | 4,0 | 36 | 63 |
| 1.123-03-05 | 08 | 8S | 4,0 | 30 | 57 |
| 1.123-04-05 | 08 | 10S | 5,5 | 30 | 57 |
| 1.123-05-05 | 08 | 12S | 5,5 | 32 | 59 |
| 1.123-05-06 | 10 | 12S | 7,0 | 32 | 62 |
| 1.123-06-06 | 10 | 14S | 7,0 | 37 | 67 |
| 1.123-08-06 | 10 | 16S | 7,0 | 37 | 67 |
| 1.123-06-08 | 12 | 14S | 10,0 | 36 | 67 |
| 1.123-08-08 | 12 | 16S | 10,0 | 38 | 69 |
| 1.123-10-08 | 12 | 20S | 10,0 | 53 | 84 |
| 1.123-10-10 | 16 | 20S | 13,0 | 38 | 72 |
| 1.123-12-12 | 19 | 25S | 15,0 | 41 | 80 |
| 1.123-16-16 | 25 | 30S | 21,0 | 47 | 93 |
| 1.123-20-20 | 31 | 38S | 27,0 | 39 | 93 |
Product information last updated on 24.05.2022 14:32:49
