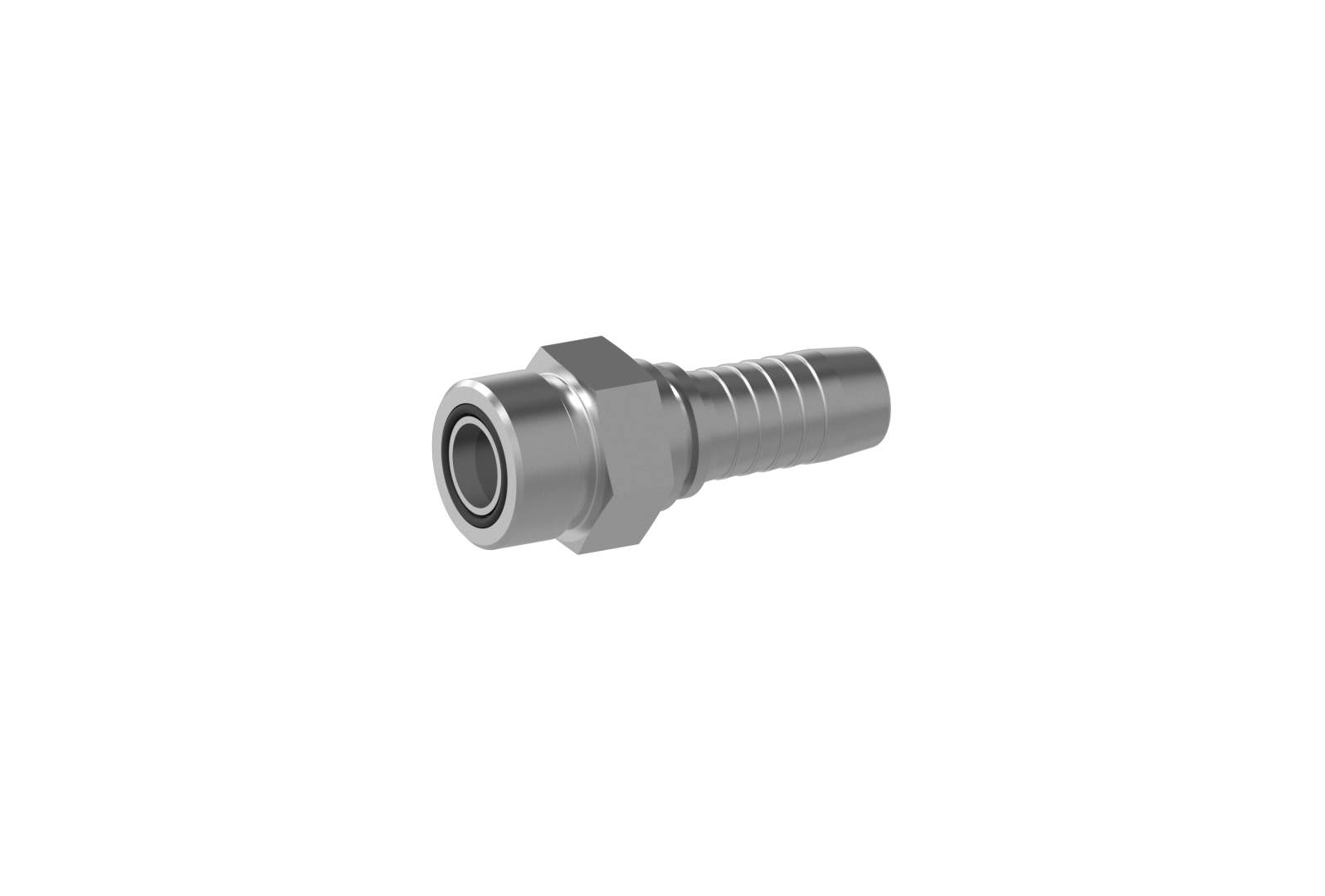

| Connection | Frontal UN male thread O-ring sealing |
| Standard | ISO 8434-3 |
| Application | TE / SN / SC / SN-K / PTFE flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

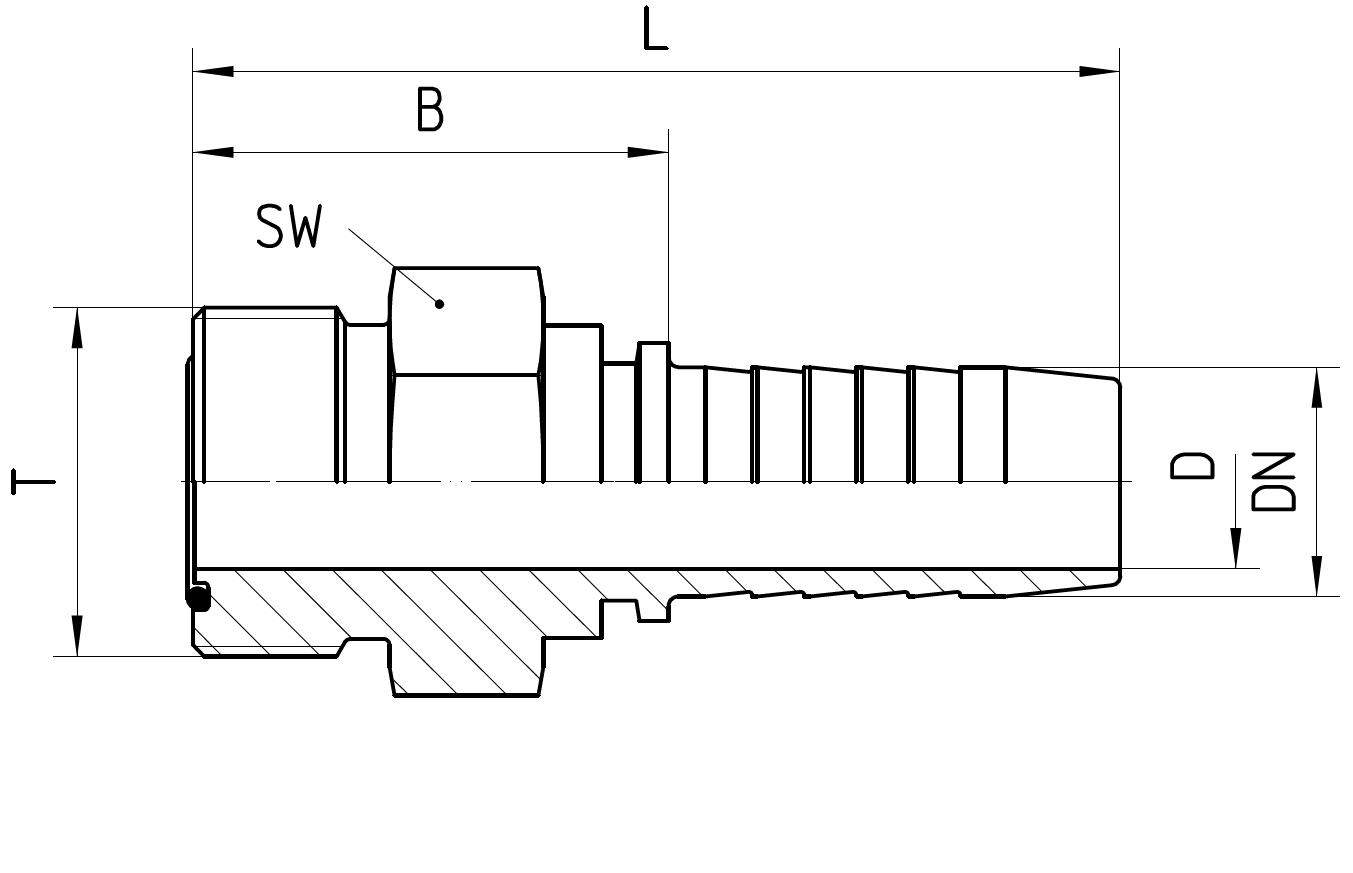

| Order no. | DN in mm | T in UNF/UN/UNS | SW in mm | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|
| 1.380-04-04 | 06 | 9/16-18 UNF | 17 | 4,0 | 24 | 51 |
| 1.380-06-05 | 08 | 11/16-16 UN | 19 | 5,5 | 25 | 52 |
| 1.380-06-06 | 10 | 11/16-16 UN | 19 | 7,0 | 25 | 55 |
| 1.380-08-08 | 12 | 13/16-16 UN | 22 | 9,5 | 29 | 61 |
| 1.380-10-10 | 16 | 1-14 UNS | 27 | 13,0 | 40 | 75 |
| 1.380-12-10 | 16 | 1 3/16-12 UN | 32 | 13,0 | 43 | 77 |
| 1.380-12-12 | 19 | 1 3/16-12 UN | 32 | 15,0 | 46 | 85 |
| 1.380-16-16 | 25 | 1 7/16-12 UN | 41 | 20,5 | 50 | 96 |
| 1.380-20-20 | 31 | 1 11/16-12 UN | 46 | 27,0 | 53 | 107 |
| 1.380-24-24 | 38 | 2-12 UN | 55 | 32,0 | 56 | 113 |
Product information last updated on 24.05.2022 14:32:49
