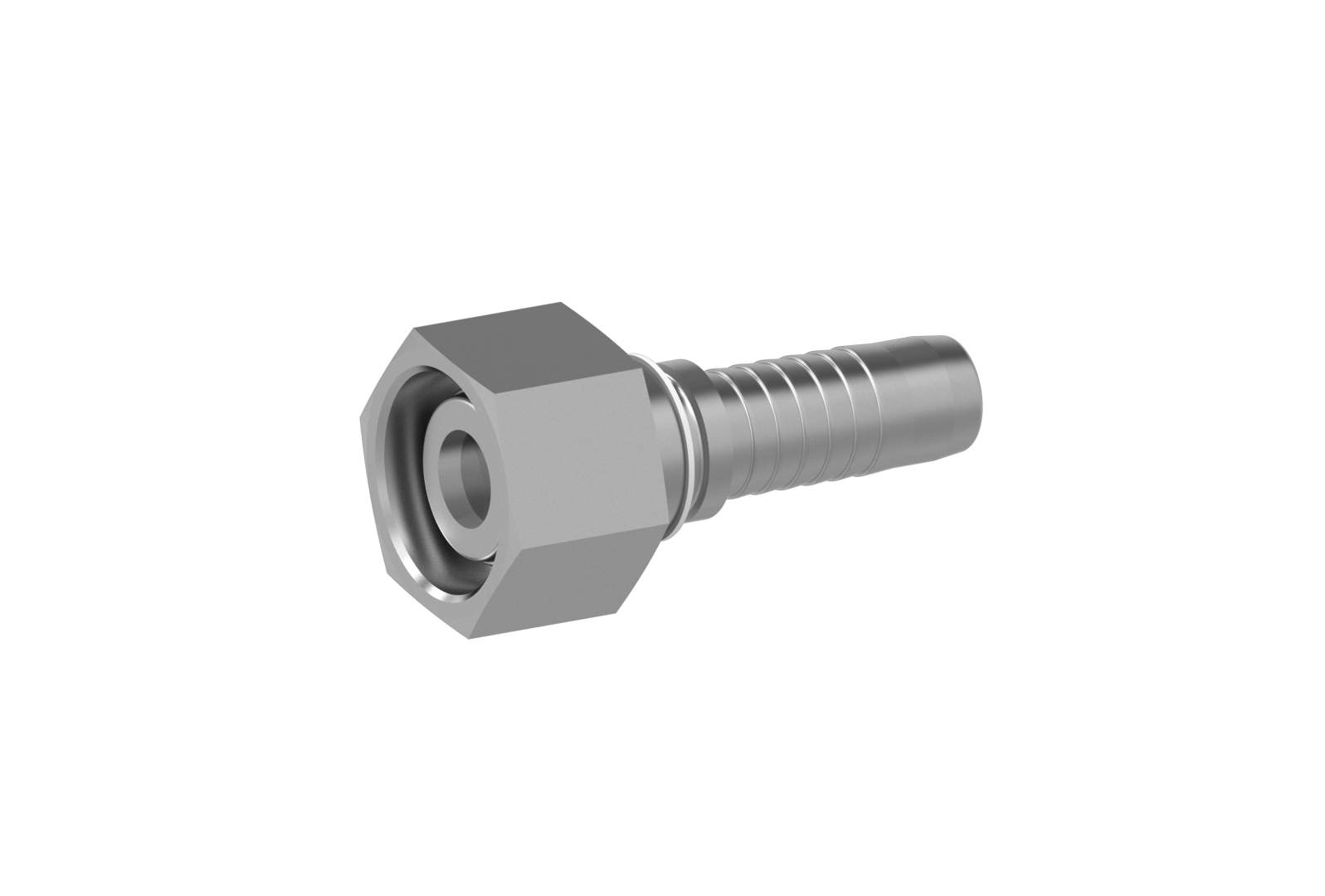

| Connection | Sealing head 24° outside cone O-ring sealing with metric nut L series |
| Standard | ISO 8434-1 |
| Application | 3SPC / 4SP hoses / 4SH19 / 4SH25 |
| Material | Steel |
| Surface protection | Zinc-electroplated |
| Order no. | DN in mm | RA | T | SW in mm | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|---|
| 4.051-03-04 | 06 | 6L | M 12x1.5 | 14 | 2,8 | 26 | 60 |
| 4.051-04-04 | 06 | 8L | M 14x1.5 | 17 | 4,0 | 28 | 62 |
| 4.051-05-04 | 06 | 10L | M 16x1.5 | 19 | 4,0 | 30 | 64 |
| 4.051-05-06 | 10 | 10L | M 16x1.5 | 19 | 5,5 | 30 | 64 |
| 4.051-06-06 | 10 | 12L | M 18x1.5 | 22 | 7,0 | 25 | 59 |
| 4.051-08-06 | 10 | 15L | M 22x1.5 | 27 | 7,0 | 29 | 63 |
| 4.051-06-08 | 12 | 12L | M 18x1.5 | 22 | 7,5 | 34 | 72 |
| 4.051-08-08 | 12 | 15L | M 22x1.5 | 27 | 9,0 | 26 | 64 |
| 4.051-10-08 | 12 | 18L | M 26x1.5 | 32 | 9,0 | 34 | 72 |
| 4.051-08-10 | 16 | 15L | M 22x1.5 | 27 | 10,0 | 33 | 75 |
| 4.051-10-10 | 16 | 18L | M 26x1.5 | 32 | 12,0 | 31 | 73 |
| 4.051-12-10 | 16 | 22L | M 30x2.0 | 36 | 12,0 | 32 | 74 |
| 4.051-10-12 | 19 | 18L | M 26x1.5 | 32 | 12,0 | 34 | 80 |
| 4.051-12-12 | 19 | 22L | M 30x2.0 | 36 | 14,8 | 37 | 83 |
| 4.051-16-12 | 19 | 28L | M 36x2.0 | 41 | 14,8 | 37 | 83 |
| 4.051-12-16 | 25 | 22L | M 30x2.0 | 36 | 14,0 | 42 | 97 |
| 4.051-16-16 | 25 | 28L | M 36x2.0 | 41 | 19,9 | 41 | 96 |
| 4.051-20-16 | 25 | 35L | M 45x2.0 | 50 | 19,9 | 43 | 98 |
