| Connection | SAE flange 6000PSI (S series) |
| Standard | ISO 6162-2 |
| Application | 3SPC / 4SP hoses / 4SH19 / 4SH25 |
| Material | Steel |
| Surface protection | Zinc-electroplated |

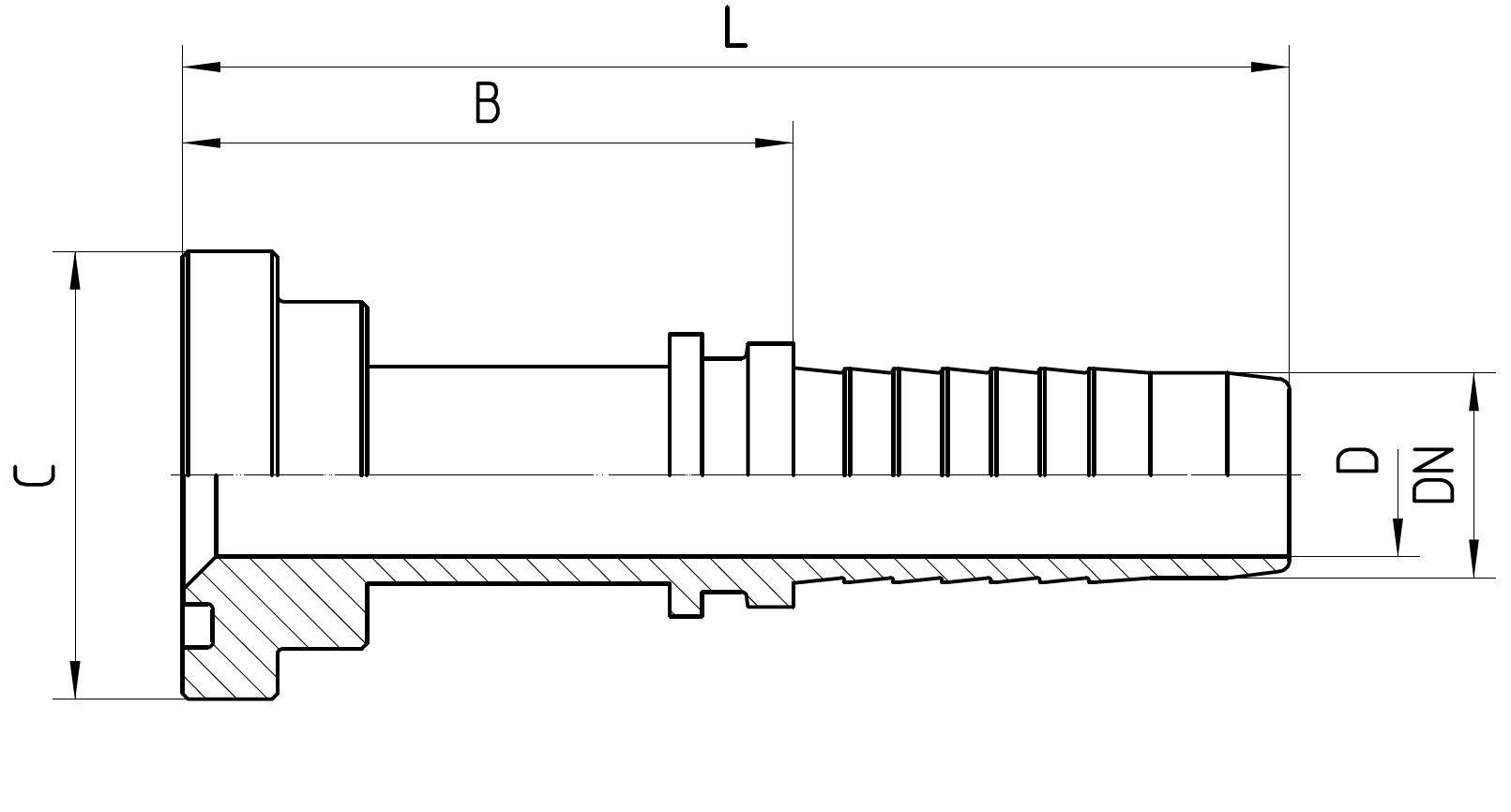

| Order no. | DN in mm | flange in inch | C in mm | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|
| 4.421-08-08 | 12 | 1/2 | 31,7 | 9,0 | 53 | 91 |
| 4.421-12-08 | 12 | 3/4 | 41,3 | 9,0 | 53 | 91 |
| 4.421-08-10 | 16 | 1/2 | 31,7 | 12,0 | 53 | 95 |
| 4.421-12-10 | 16 | 3/4 | 41,3 | 12,0 | 50 | 92 |
| 4.421-08-12 | 19 | 1/2 | 31,7 | 14,0 | 56 | 102 |
| 4.421-12-12 | 19 | 3/4 | 41,3 | 14,8 | 58 | 104 |
| 4.421-16-12 | 19 | 1 | 47,6 | 14,8 | 58 | 104 |
| 4.421-12-16 | 25 | 3/4 | 41,3 | 19,9 | 57 | 112 |
| 4.421-16-16 | 25 | 1 | 47,6 | 19,9 | 57 | 112 |
| 4.421-20-16 | 25 | 1 1/4 | 54,0 | 19,9 | 58 | 113 |
Product information last updated on 24.05.2022 14:32:49
