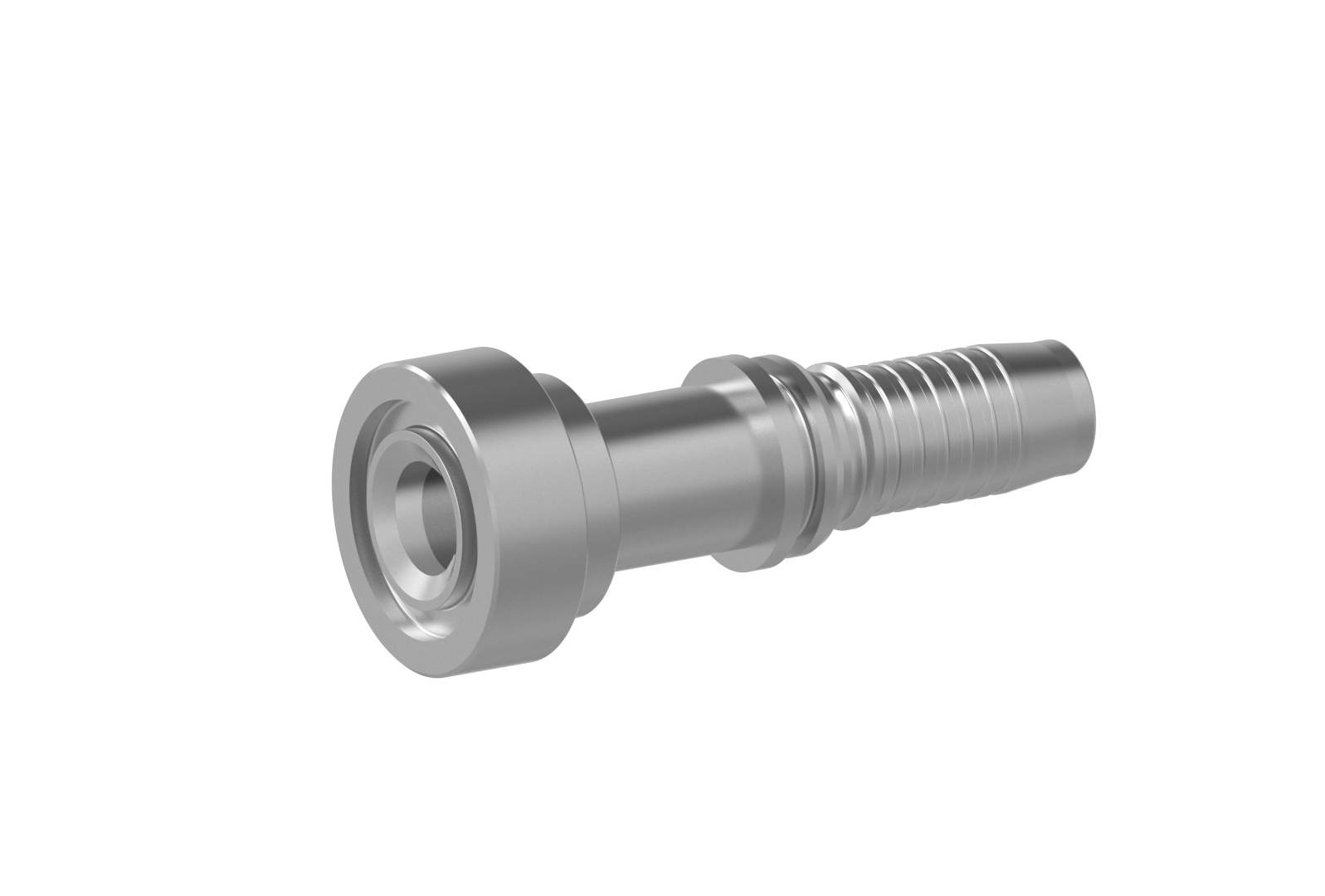

| Connection | CAT flange |
| Application | 4SH flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |
| Note | * changed outline to improve the safety, therefore measurements differ from standard systems |
| Order no. | DN in mm | flange in inch | C in mm | min. D in mm | B±3 in mm | L±3 in mm | Note |
|---|---|---|---|---|---|---|---|
| 5.426-12-12 | 19 | 3/4 | 41,3 | 14,8 | 52 | 93 | |
| 5.426-16-12 | 19 | 1 | 47,6 | 14,8 | 51 | 92 | |
| 5.426-12-16 | 25 | 3/4 | 41,3 | 20,0 | 58 | 110 | * |
| 5.426-16-16 | 25 | 1 | 47,6 | 20,0 | 60 | 112 | * |
| 5.426-20-16 | 25 | 1 1/4 | 54,0 | 20,0 | 63 | 115 | * |
| 5.426-16-20 | 31 | 1 | 47,6 | 23,0 | 66 | 135 | |
| 5.426-20-20 | 31 | 1 1/4 | 54,0 | 25,0 | 67 | 136 | |
| 5.426-24-20 | 31 | 1 1/2 | 63,5 | 25,0 | 68 | 137 | |
| 5.426-20-24 | 38 | 1 1/4 | 54,0 | 23,0 | 68 | 137 | |
| 5.426-24-24 | 38 | 1 1/2 | 63,5 | 30,0 | 69 | 138 | |
| 5.426-24-32 | 51 | 1 1/2 | 63,5 | 30,0 | 90 | 155 |
Product information last updated on 24.05.2022 14:32:49
