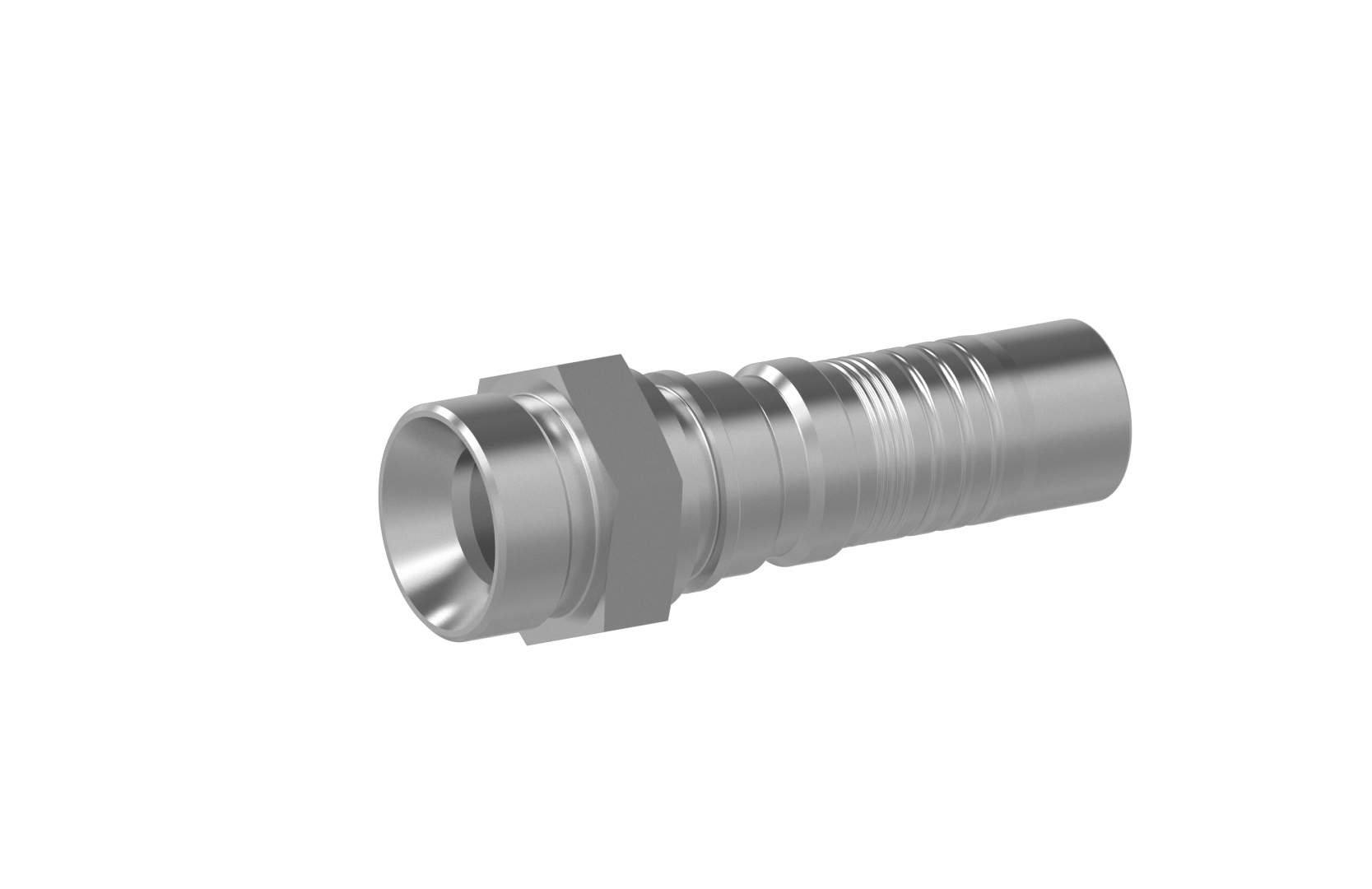

| Connection | BSPP male thread (G) with 60° inner cone |
| Standard | ISO 8434-6 |
| Application | 4SH / R15 / R13 (DN51) flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

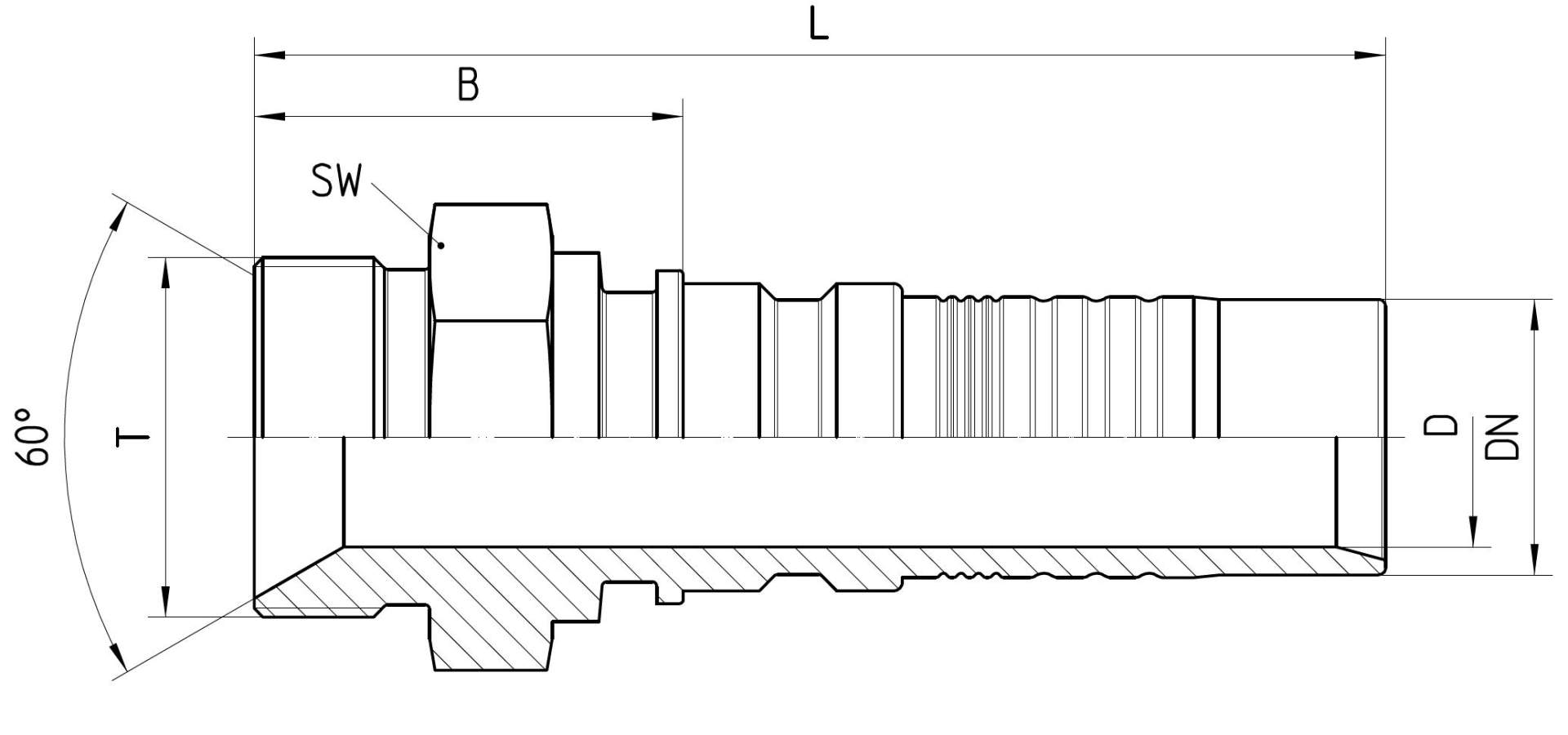

| Order no. | DN | T in inch | SW in mm | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|
| 7.260-12-12 | 19 | G 3/4 | 30 | 15,0 | 37 | 93 |
| 7.260-16-16 | 25 | G 1 | 36 | 20,0 | 46 | 112 |
| 7.260-20-20 | 31 | G 1 1/4 | 46 | 25,0 | 49 | 129 |
| 7.260-24-24 | 38 | G 1 1/2 | 55 | 30,0 | 51 | 142 |
| 7.260-32-32 | 51 | G 2 | 65 | 40,0 | 57 | 148 |
Product information last updated on 24.05.2022 14:32:49
