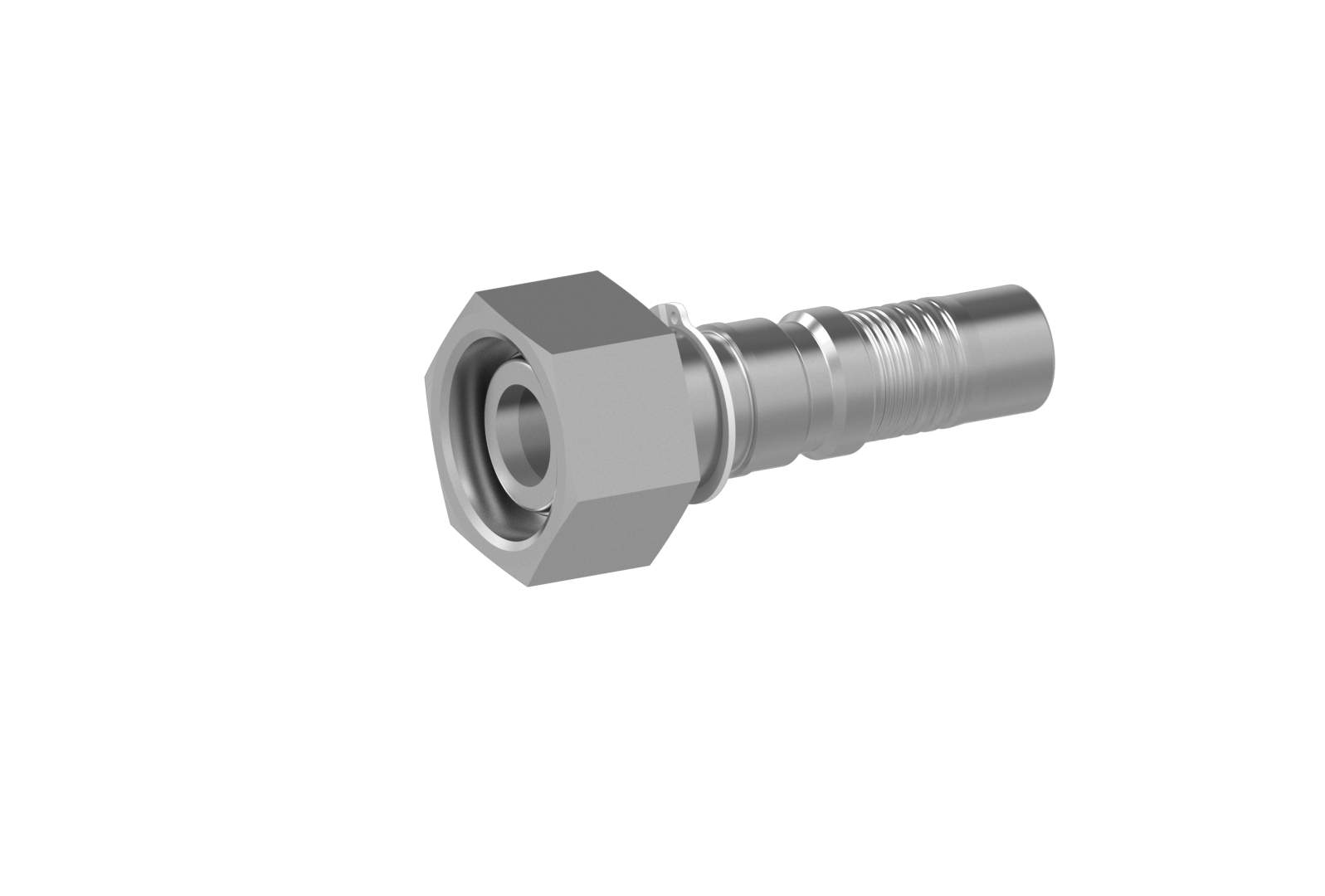

| Connection | Sealing head 60° outside cone O-ring sealing with BSPP nut (G) |
| Standard | ISO 8434-6 |
| Application | 4SH / R15 / R13 (DN51) flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

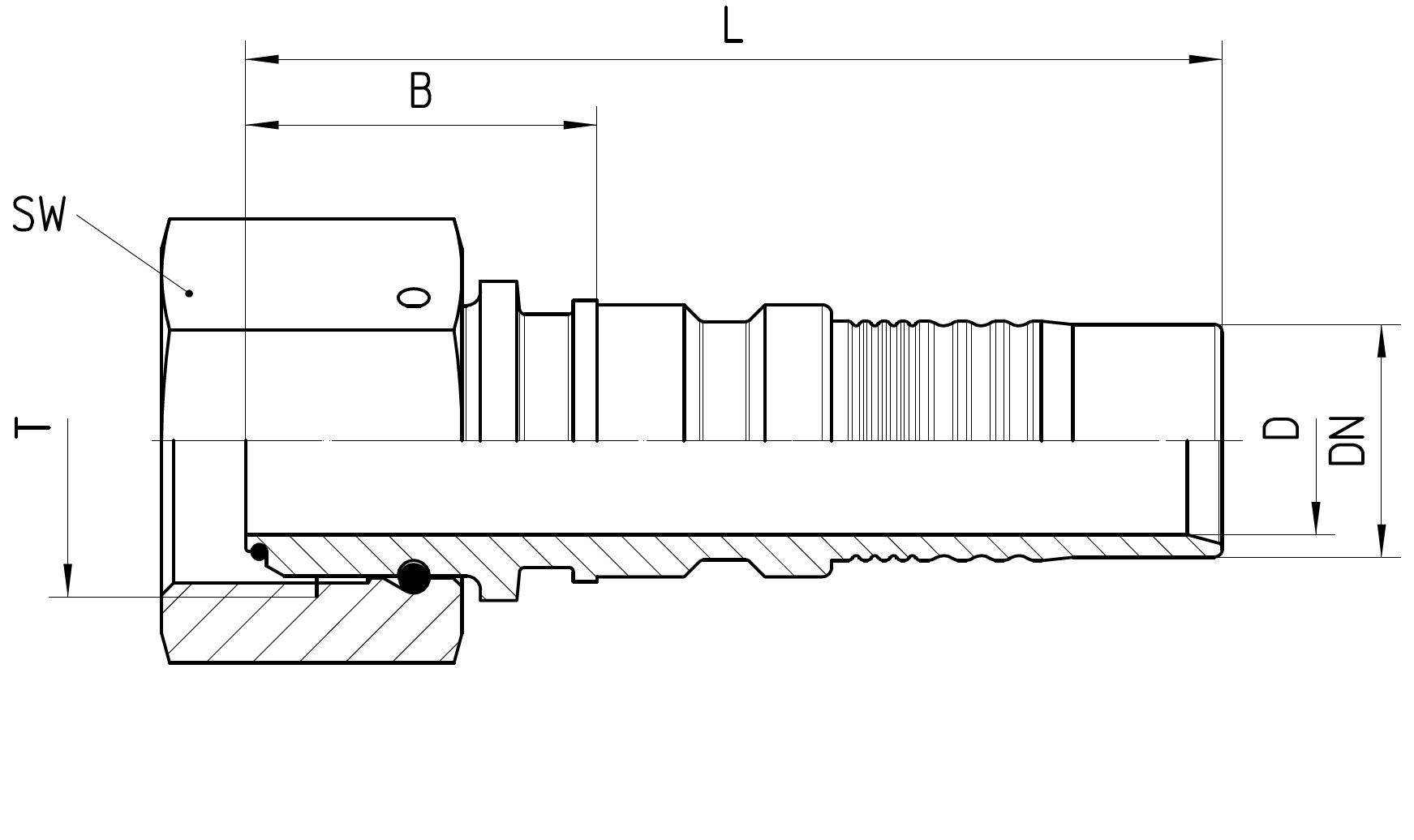

| Order no. | DN in mm | T in inch | SW in mm | min. D in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|
| 7.203-12-12/O | 19 | G 3/4 | 32 | 15,0 | 56 | 87 |
| 7.203-16-16/O | 25 | G 1 | 41 | 20,0 | 37 | 104 |
| 7.203-20-20/O | 31 | G 1 1/4 | 50 | 25,0 | 39 | 119 |
| 7.203-24-24/O | 38 | G 1 1/2 | 55 | 30,0 | 37 | 129 |
| 7.203-32-32/O | 51 | G 2 | 70 | 40,0 | 91 | 137 |
Product information last updated on 24.05.2022 14:32:49
