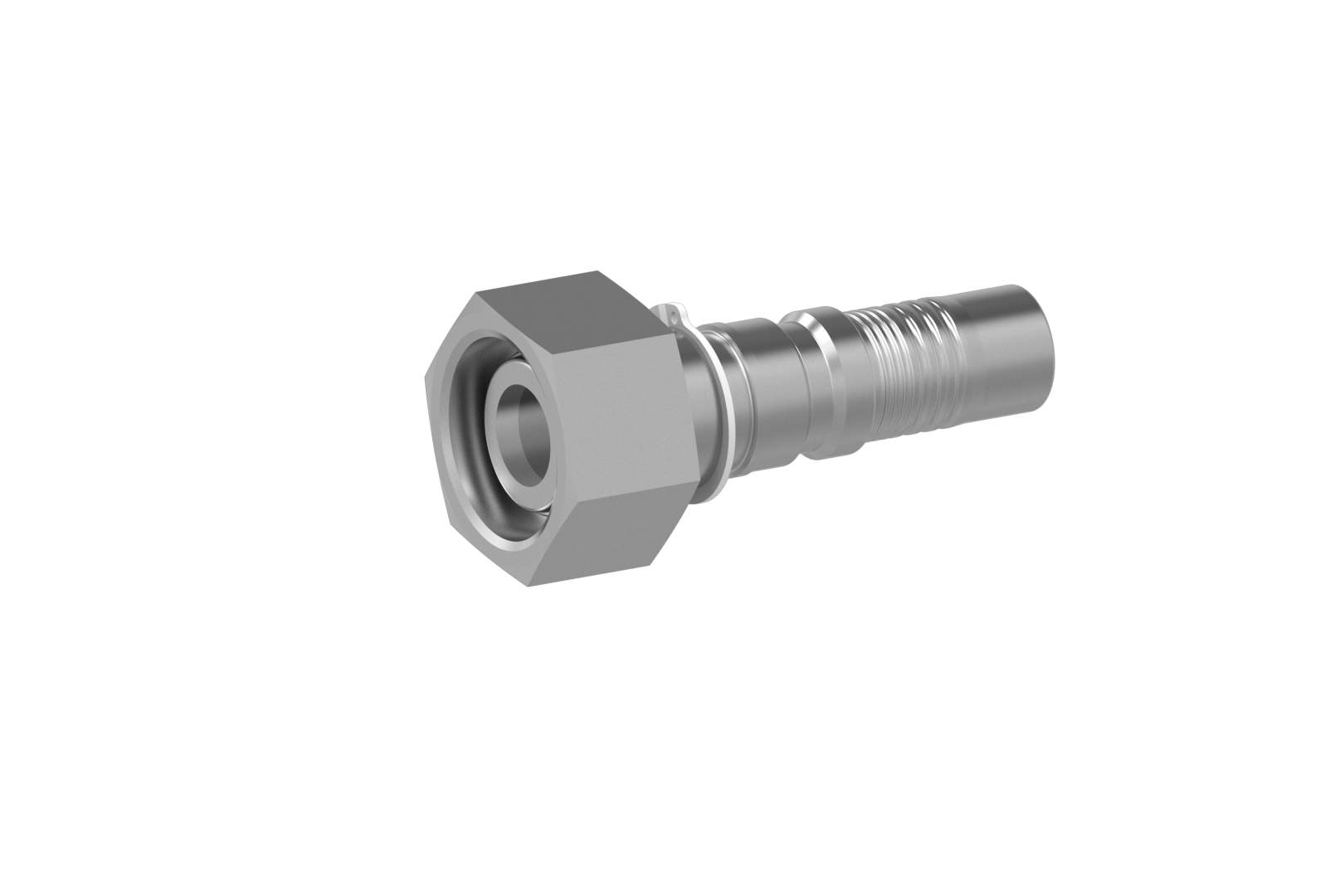

| Connection | Sealing head 24° outside cone O-ring sealing with metric nut S series |
| Standard | ISO 8434-1 |
| Application | 4SH / R15 / R13 (DN51) flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |
| Accessories | 3437309 |

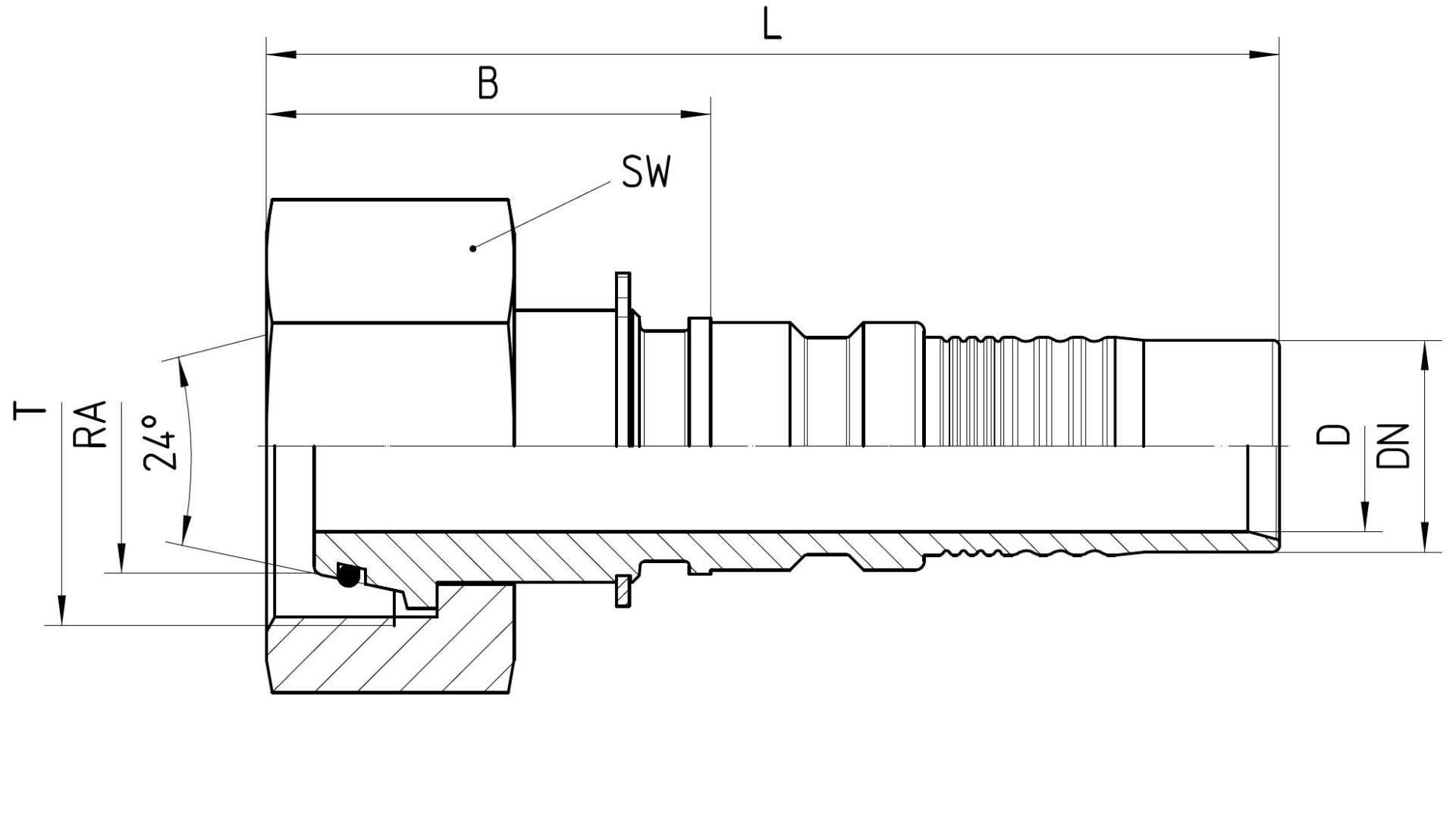

| Order no. | DN in mm | RA | T in inch | SW in mm | min.D in mm | B±3 in mm | L±3 in mm | Ferrules for 4 SH Order no. | Ferrules for R15 Order no. |
|---|---|---|---|---|---|---|---|---|---|
| 7.581-12-12/BH | 19 | 25S | M 36x2 | 46 | 12,0 | 50 | 104 | 740-12 | 740-12 |
| 7.581-16-16/BH | 25 | 30S | M 42x2 | 50 | 17,0 | 52 | 121 | 740-16 | 740-16 |
| 7.581-20-20/BH | 31 | 38S | M 52x2 | 60 | 22,0 | 62 | 142 | 740-20 | 760-20 |
