| Connection | SAE flange 36000PSI (L series) |
| Standard | ISO 6162-1 |
| Application | 4SH / R15 / R13 (DN51) flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

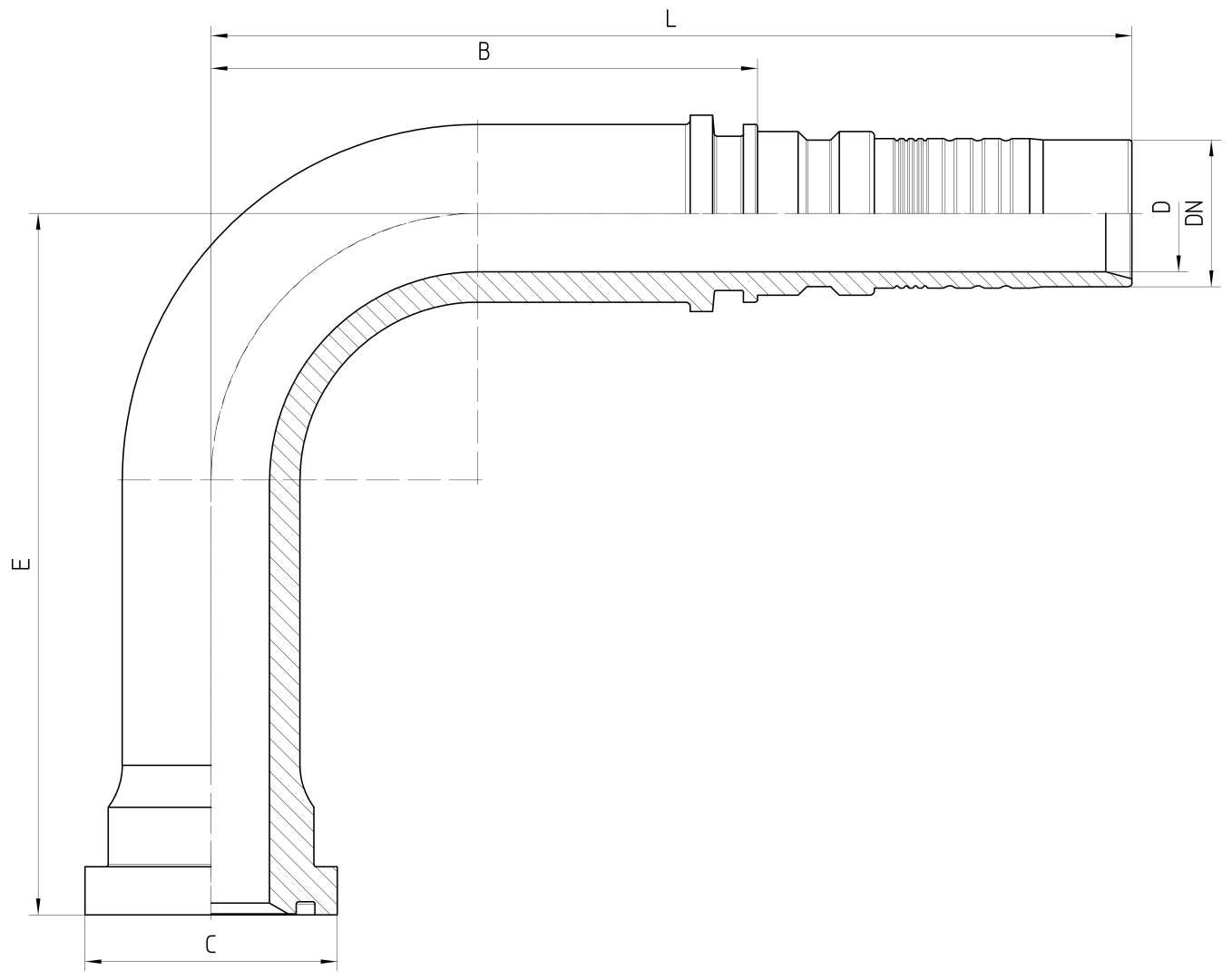

| Order no. | DN in mm | flange in inch | C in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|---|
| 7.470-12-12 | 19 | 3/4 | 38,1 | 15,0 | 64 | 72 | 128 |
| 7.470-16-16 | 25 | 1 | 44,5 | 20,0 | 88 | 93 | 160 |
| 7.470-20-20 | 31 | 1 1/4 | 50,8 | 25,0 | 108 | 117 | 197 |
| 7.470-24-24 | 38 | 1 1/2 | 60,3 | 30,0 | 117 | 139 | 230 |
| 7.470-32-24 | 38 | 2 | 71,4 | 40,0 | 135 | 139 | 230 |
| 7.470-32-32 | 51 | 2 | 71,4 | 40,0 | 140 | 133 | 224 |
Product information last updated on 24.05.2022 14:32:49
