| Connection | SAE flange 6000PSI (S series) |
| Standard | ISO 6162-2 |
| Application | 4SH / R15 / R13 (DN51) flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

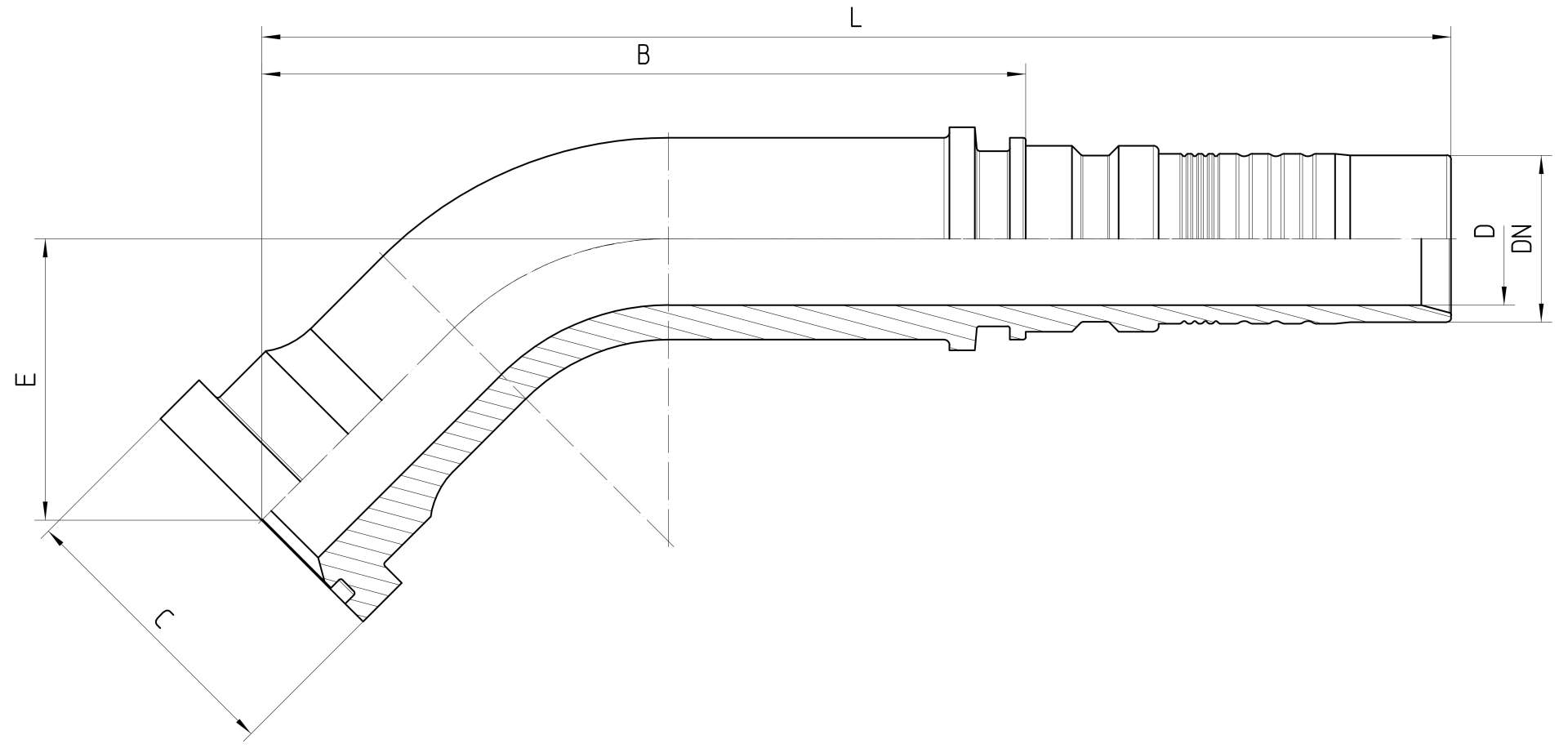

| Order no. | DN in mm | flange in inch | C in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|---|
| 7.451-12-12 | 19 | 3/4 | 41,3 | 15,0 | 32 | 81 | 137 |
| 7.451-16-16 | 25 | 1 | 47,6 | 20,0 | 44 | 108 | 178 |
| 7.451-16-20 | 31 | 1 | 47,6 | 25,0 | 44 | 134 | 215 |
| 7.451-20-20 | 31 | 1 1/4 | 54,0 | 25,0 | 53 | 144 | 224 |
| 7.451-20-24 | 38 | 1 1/4 | 54,0 | 30,0 | 60 | 149 | 240 |
| 7.451-24-24 | 38 | 1 1/2 | 63,5 | 30,0 | 59 | 158 | 249 |
| 7.451-32-32 | 51 | 2 | 79,4 | 40,0 | 65 | 152 | 243 |
Product information last updated on 24.05.2022 14:32:49
