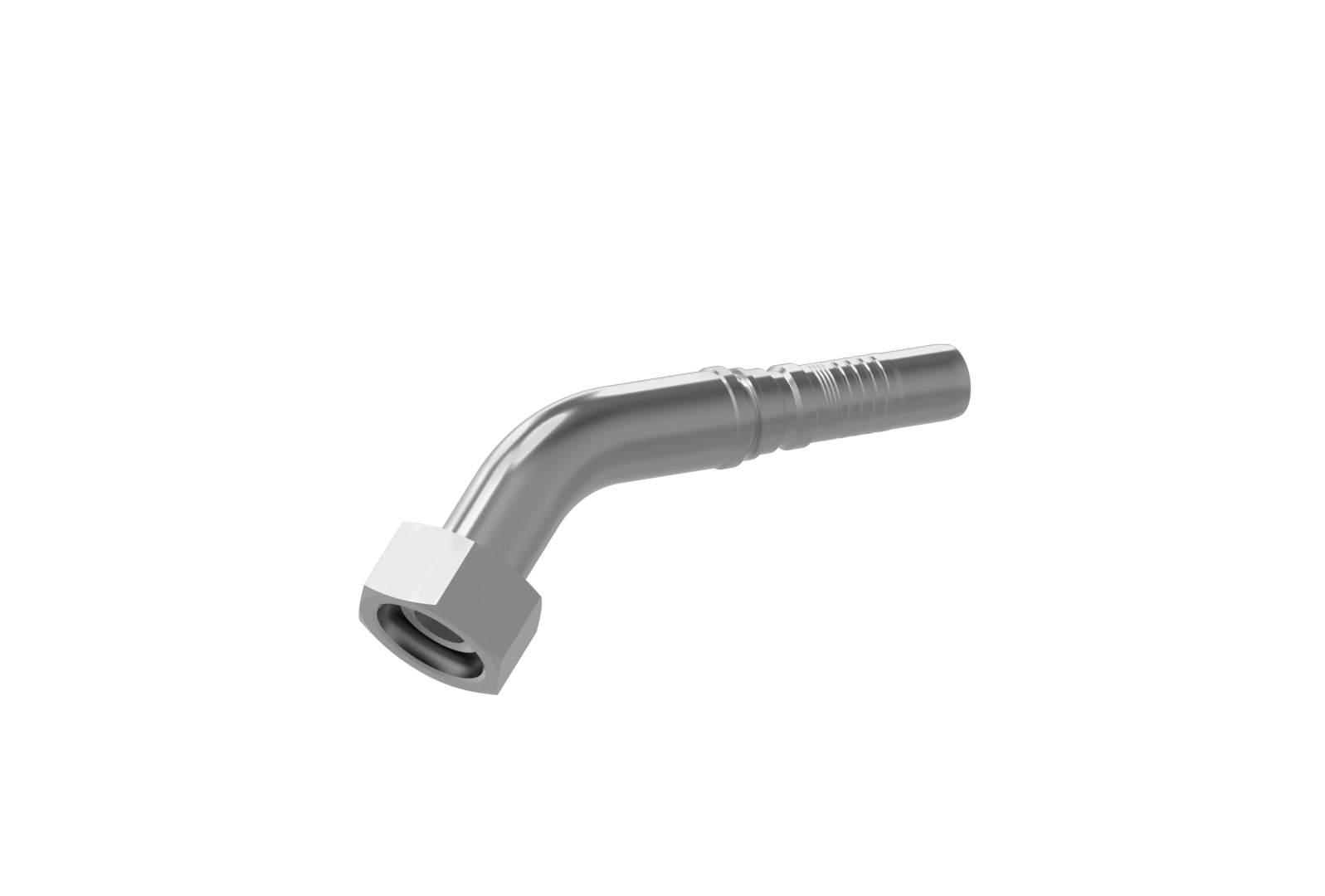

| Connection | Sealing head 24° outside cone O-ring sealing with metric nut S series |
| Standard | ISO 8434-1 |
| Application | 560 bar flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

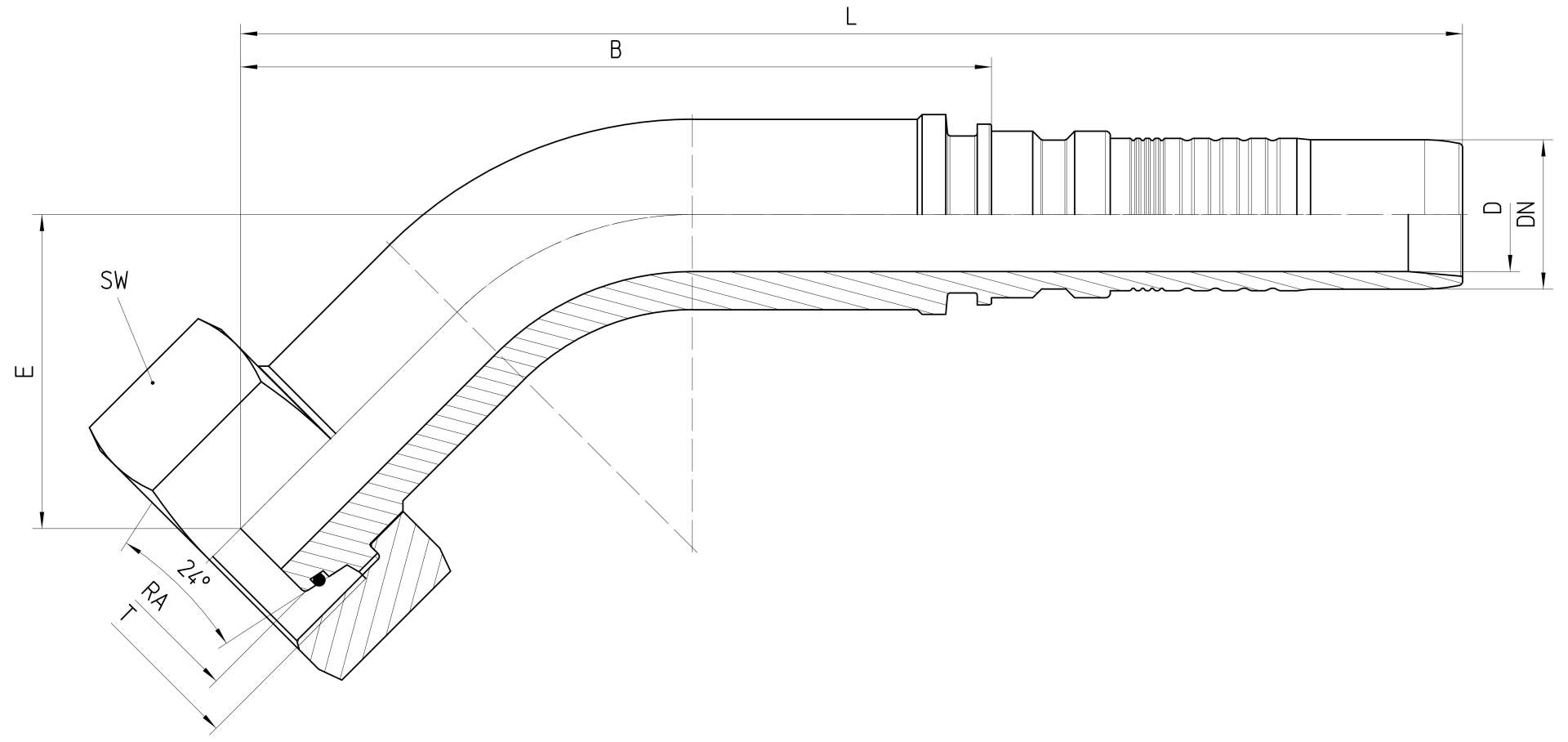

| Order no. | DN in mm | RA | T | SW in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm | working pressure in bar |
|---|---|---|---|---|---|---|---|---|---|
| 8.885-12-12 | 19 | 25 S | M 36x2 | 46 | 14,0 | 40 | 92 | 163 | 560 |
| 8.885-16-16 | 25 | 30 S | M 42x2 | 55 | 19,0 | 69 | 141 | 230 | 560 |
| 8.885-20-20 | 31 | 38 S | M 52x2 | 65 | 24,0 | 61 | 134 | 233 | 523 |
Product information last updated on 24.05.2022 14:32:49
