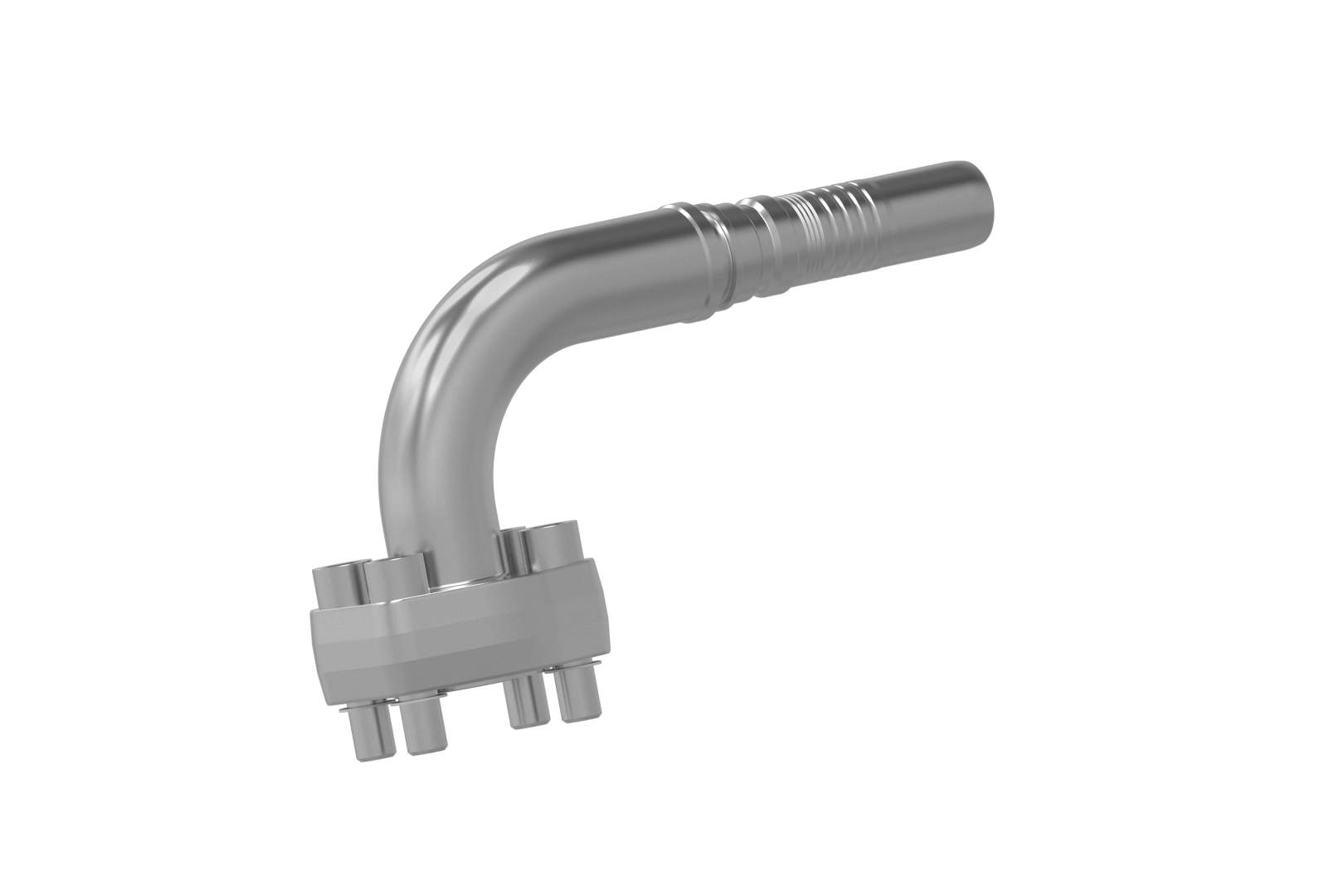

| Connection | SAE flange 6000 PSI (S series) |
| Standard | ISO 6162-2 |
| Application | 560 bar flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |

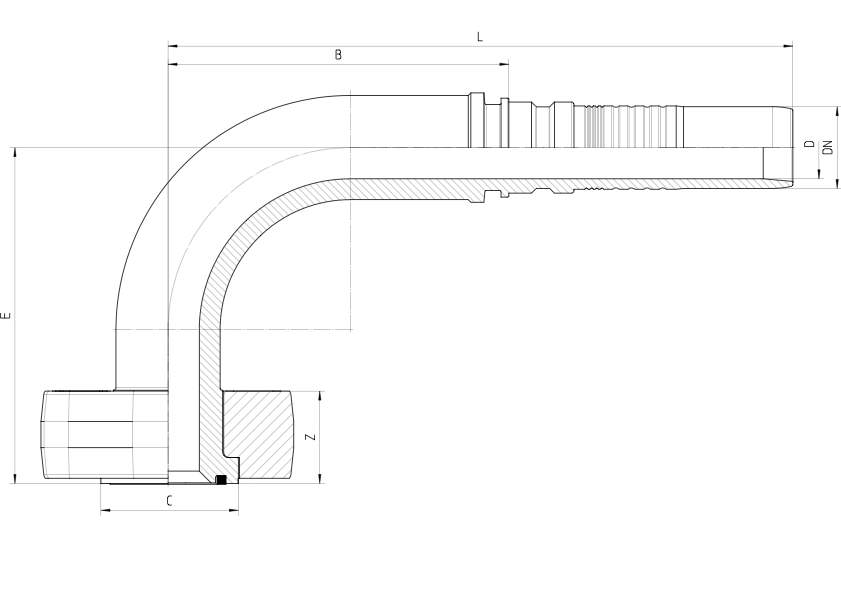

| Order no. | DN in mm | Flange in inch | C in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm | Z in mm | S1 in mm | S2 in mm | T1 in mm | T2 in mm | cheese-head screw 4x DIN EN ISO 4762 12.9 | Kantseal ring 90 Shore |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.871-12-12 | 19 | 3/4 | 41,3 | 14,0 | 76 | 77 | 148 | 28,5 ± 0,2 | 23,8 | 50,8 | 62,0 +0,9 -0,5 | 73,0 +0,9 -0,5 | M10x45 | 24,99x3,40 |
| 8.871-16-12 | 19 | 1 | 48,0 | 14,0 | 75 | 77 | 148 | 28,5 ± 0,2 | 27,8 | 57,22 | 73,5 +0,9 -0,5 | 82,5 +0,9 -0,5 | M12x50 | 23,99x3,40 |
| 8.871-16-16 | 25 | 1 | 48,0 | 19,0 | 93 | 118 | 207 | 28,5 ± 0,2 | 27,8 | 57,22 | 73,5 +0,9 -0,5 | 82,5 +0,9 -0,5 | M12x50 | 32,99x3,40 |
| 8.871-20-16 | 25 | 1 1/4 | 54,0 | 19,0 | 100 | 115 | 203 | 35,5 ± 0,3 | 31,8 | 66,7 | 83,5 +1,1 -0,5 | 96,5 +1,1 -0,5 | M14x55 | 37,69x3,40 |
| 8.871-20-20 | 31 | 1 1/4 | 54,0 | 24,0 | 129 | 131 | 240 | 35,5 ± 0,3 | 31,8 | 66,7 | 83,5 +1,1 -0,5 | 96,5 +1,1 -0,5 | M14x55 | 37,69x3,40 |
