Suction and low-pressure fittings

loose DIN flange 90°

Mark Marked
loose DIN flange 90°
loose DIN flange 90°
Connection loose DIN flange
Standard DIN 2673 (new: EN1092-1, Typ 04 PN16 and Typ 34 PN16)
Application 14A / 17A flexible tubes
Material Steel
Surface protection Zinc-electroplated
Note deviating measurements when En flanges are used

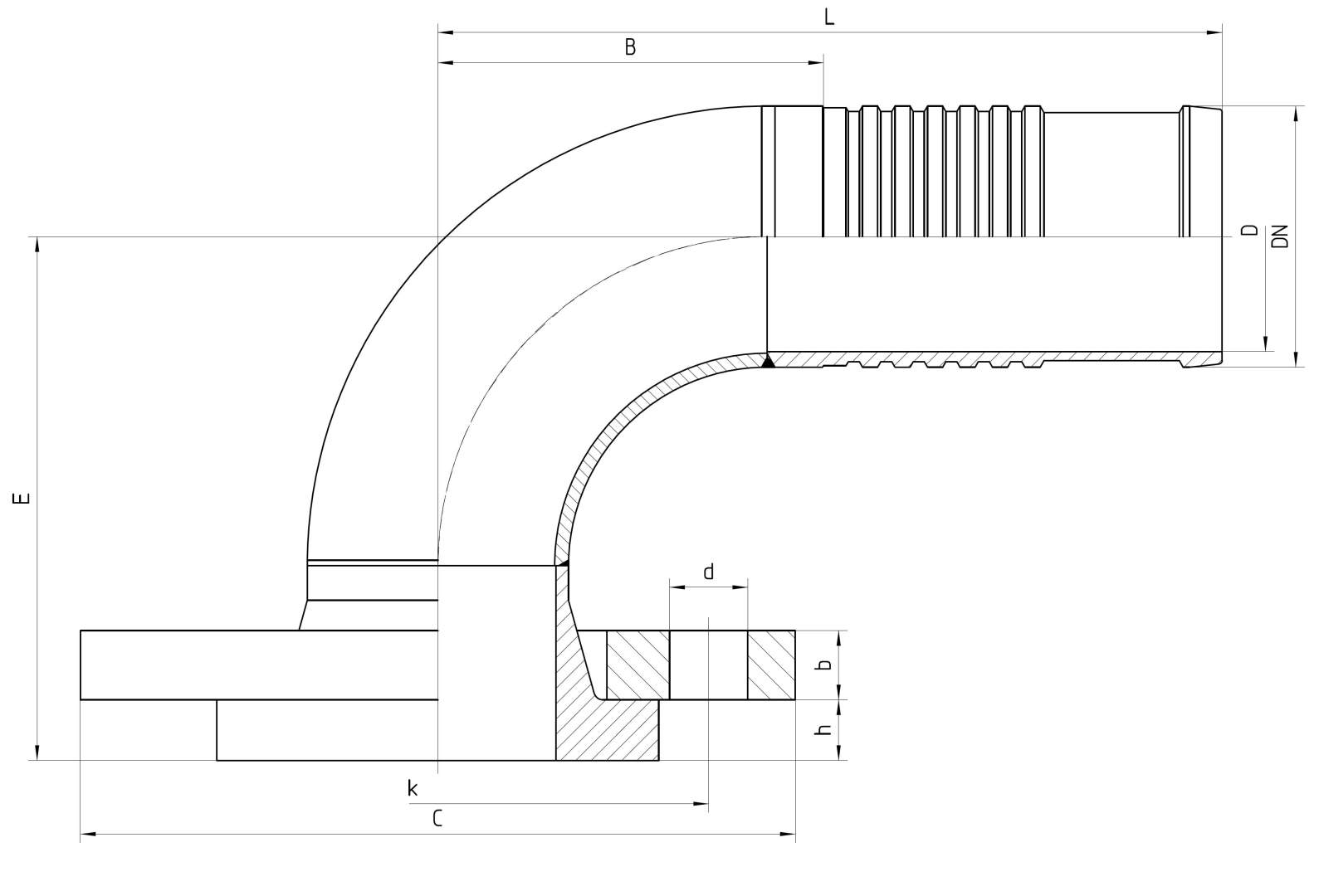

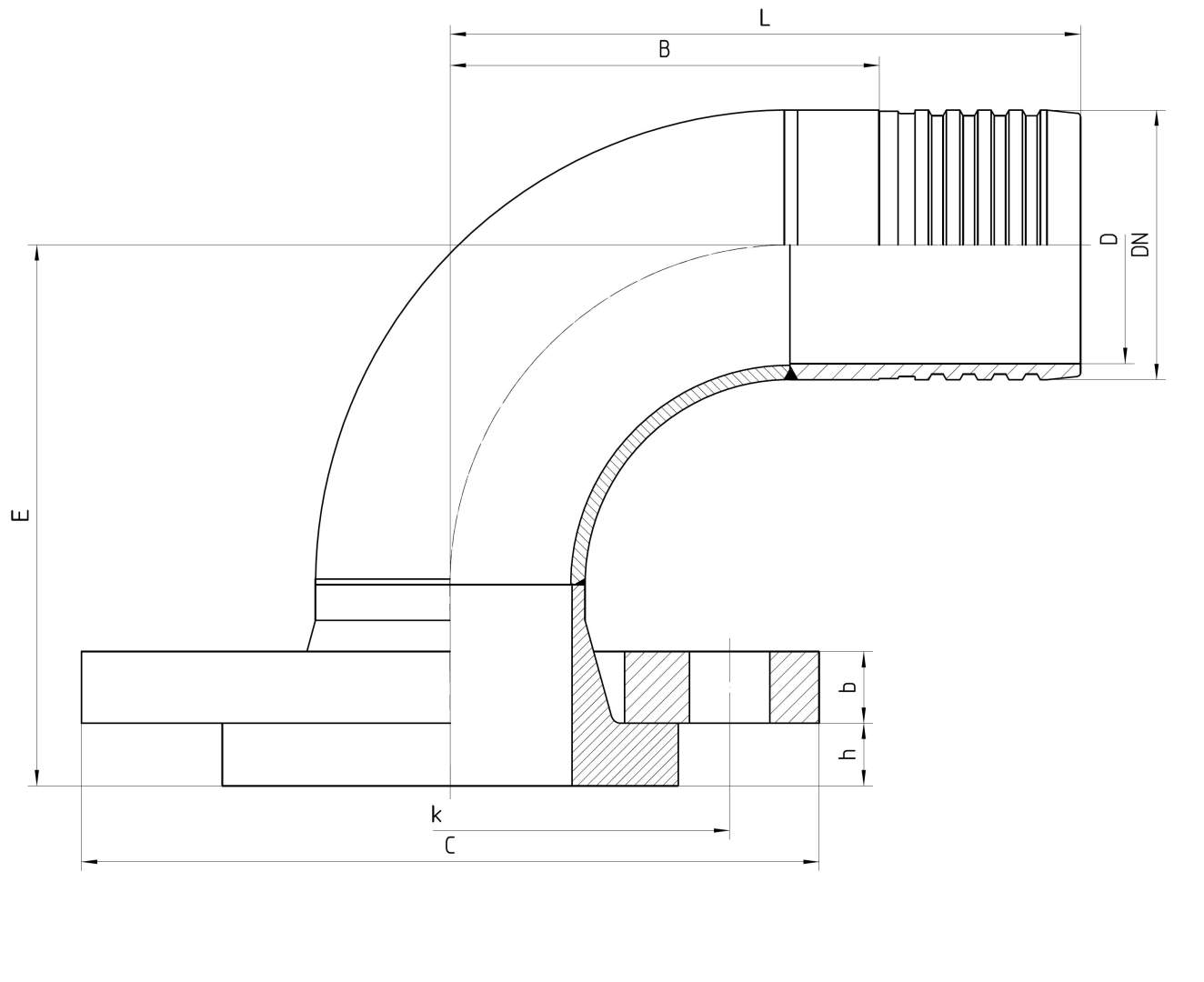

Order no. DN in mm DN DIN-Flange C in mm b in mm k in mm number of screws screws T d in mm h in mm D in mm E±3 in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.439-12-12 19 20 105 14 (16) 75 4 M12 14 12 (14) 14 70 50 130 17.439K-12-12 46 90
17.439-16-12 19 25 115 16 85 4 M12 14 12 (14) 14 75 55 135 17.439K-16-12 51 95
17.439-12-16 25 20 105 14 (16) 75 4 M12 14 12 (14) 19 70 50 130 17.439K-12-16 46 90
17.439-16-16 25 25 115 16 85 4 M12 14 12 (14) 19 75 55 135 17.439K-16-16 51 95
17.439-20-16 25 32 140 16 (18) 100 4 M16 18 12 (14) 19 85 (87) 65 145 17.439K-20-16 61 105
17.439-12-20 31 20 105 14 (16) 75 4 M12 14 12 (14) 26 75 55 135 17.439K-12-20 51 95
17.439-16-20 31 25 115 16 85 4 M12 14 12 (14) 26 75 55 135 17.439K-16-20 51 95
17.439-20-20 31 32 140 16 (18) 100 4 M16 18 12 (14) 26 85 (87) 75 155 17.439K-20-20 61 105
17.439-24-20 31 40 150 16 (18) 110 4 M16 18 12 (14) 26 90 (95) 70 150 17.439K-24-20 66 110
17.439-12-24 38 20 105 (14) 16 75 4 M12 14 12 (14) 32 75 55 135 17.439K-12-24 51 95
17.439-16-24 38 25 115 16 85 4 M12 14 12 (14) 32 75 55 135 17.439K-16-24 51 95
17.439-20-24 38 32 140 16 (18) 100 4 M16 18 12 (14) 32 85 (87) 65 145 17.439K-20-24 61 105
17.439-24-24 38 40 150 16 (18) 110 4 M16 18 12 (14) 32 90 (95) 70 150 17.439K-24-24 66 110
17.439-32-24 38 50 165 16 (20) 125 4 M16 18 14 (16) 32 108 105 185 17.439K-32-24 98 142
17.439-16-32 51 25 115 16 85 4 M12 14 12 (14) 44 85 86 178 17.439K-16-32 93 138
17.439-20-32 51 32 140 16 (18) 100 4 M16 18 12 (14) 44 104 (106) 82 174 17.439K-20-32 93 138
17.439-24-32 51 40 150 16 (18) 110 4 M16 18 12 (14) 44 97 75 167 17.439K-24-32 88 133
17.439-32-32 51 50 165 16 (20) 125 4 M16 18 14 (16) 44 121 94 186 17.439K-32-32 98 143
17.439-40-32 51 65 185 16 (20) 145 4 (8) M16 18 14 (16) 44 139 203 295 17.439K-40-32 134 179
17.439-16-36 60 25 115 16 85 4 M12 14 12 (14) 53 85 88 180 17.439K-16-36 95 140
17.439-20-36 60 32 140 16 (18) 100 4 M16 18 12 (14) 53 90 (92) 93 185 17.439K-20-36 100 145
17.439-24-36 60 40 150 16 (18) 110 4 M16 18 12 (14) 53 106 (111) 94 186 17.439K-24-36 101 146
17.439-32-36 60 50 165 16 (20) 125 4 M16 18 14 (16) 53 118 86 178 17.439K-32-36 93 138
17.439-40-36 60 65 185 16 (20) 145 4 (8) M16 18 14 (16) 53 139 145 237 17.439K-40-36 132 177
17.439-48-36 60 80 200 18 (20) 160 8 M16 18 16 53 145 125 217 17.439K-48-36 132 177
17.439-20-48 76 32 140 16 (18) 100 4 M16 18 12 (14) 69 90 (92) 100 192 17.439K-20-48 107 152
17.439-24-48 76 40 150 16 (18) 110 4 M16 18 12 (14) 69 106 (111) 113 205 17.439K-24-48 120 165
17.439-32-48 76 50 165 16 (20) 125 4 M16 18 14 (16) 69 118 123 215 17.439K-32-48 125 170
17.439-40-48 76 65 185 16 (20) 145 4 (8) M16 18 14 (16) 69 139 123 215 17.439K-40-48 124 169
17.439-48-48 76 80 200 18 (20) 160 8 M16 18 16 69 163 162 254 17.439K-48-48 169 214
17.439-64-48 76 100 220 18 (22) 180 8 M16 18 16 (18) 69 182 (184) 177 269 17.439K-64-48 184 229
17.439-24-56 90 40 150 16(18) 110 4 M16 18 12 (14) 82 106 (111) 121 213 17.439K-24-56 128 173
17.439-32-56 90 50 165 16 (20) 125 4 M16 18 14 (16) 82 118 125 217 17.439K-32-56 132 177
17.439-40-56 90 65 185 16 (20) 145 4 (8) M16 18 14 (16) 82 139 125 217 17.439K-40-56 132 177
17.439-48-56 90 80 200 18 (20) 160 8 M16 18 16 82 163 151 243 17.439K-48-56 158 203
17.439-64-56 90 100 220 18 (22) 180 8 M16 18 16 (18) 82 182 (184) 170 262 17.439K-64-56 177 222
17.439-32-64 102 50 165 16 (20) 125 4 M16 18 14 (16) 94 118 140 232 17.439K-32-64 144 192
17.439-40-64 102 65 185 16 (20) 145 4 (8) M16 18 14 (16) 94 139 157 249 17.439K-40-64 161 209
17.439-48-64 102 80 200 18 (20) 160 8 M16 18 16 94 163 139 231 17.439K-48-64 143 191
17.439-64-64 102 100 220 18 (22) 180 8 M16 18 16 (18) 94 182 (184) 160 252 17.439K-64-64 164 212
17.439-80-64 102 125 250 18 (22) 210 8 M16 18 18 94 232 (237) 245 337 17.439K-80-64 170 218
17.439-64-96 152 100 220 18 (22) 180 8 M16 18 16 (18) 142 204 (206) 320 448 17.439K-64-96 217 297
17.439-80-96 152 125 250 18 (22) 210 8 M16 18 18 142 240 (245) 222 350 17.439K-80-96 230 310
17.439-96-96 152 150 285 18 (24) 240 8 M20 22 18 (20) 142 263 (268) 242 370 17.439K-96-96 250 330
17.439-128-96 152 200 340 20 (26) 295 12 M20 22 20 142 330 (337) 322 450 17.439K-128-96 330 410
