| Connection | loose DIN flange |
| Standard | DIN 2673 (new: EN1092-1, Typ 04 PN16 and Typ 34 PN16) |
| Application | 14A / 17A flexible tubes |
| Material | Steel |
| Surface protection | Zinc-electroplated |
| Note | deviating measurements when En flanges are used |

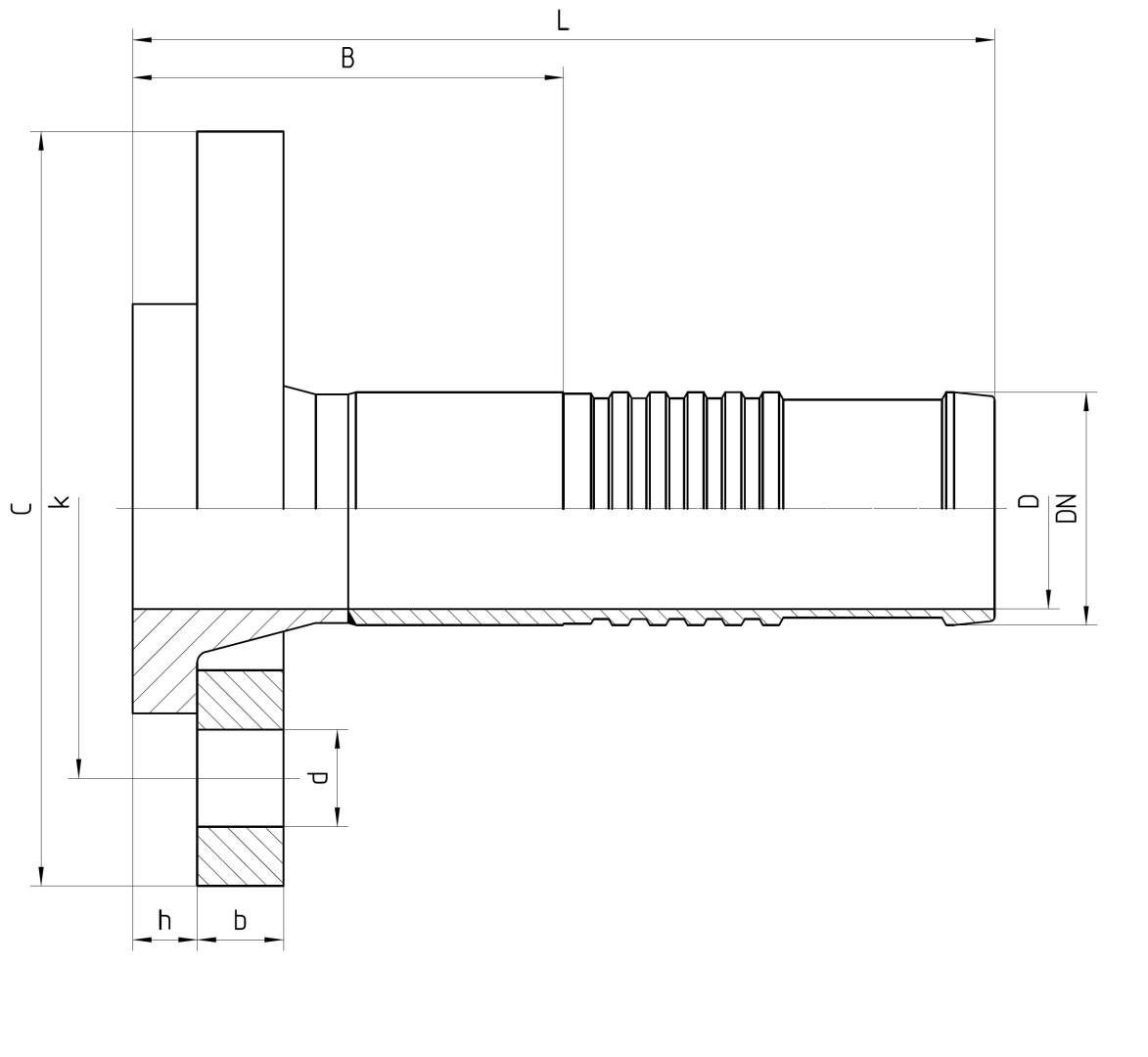

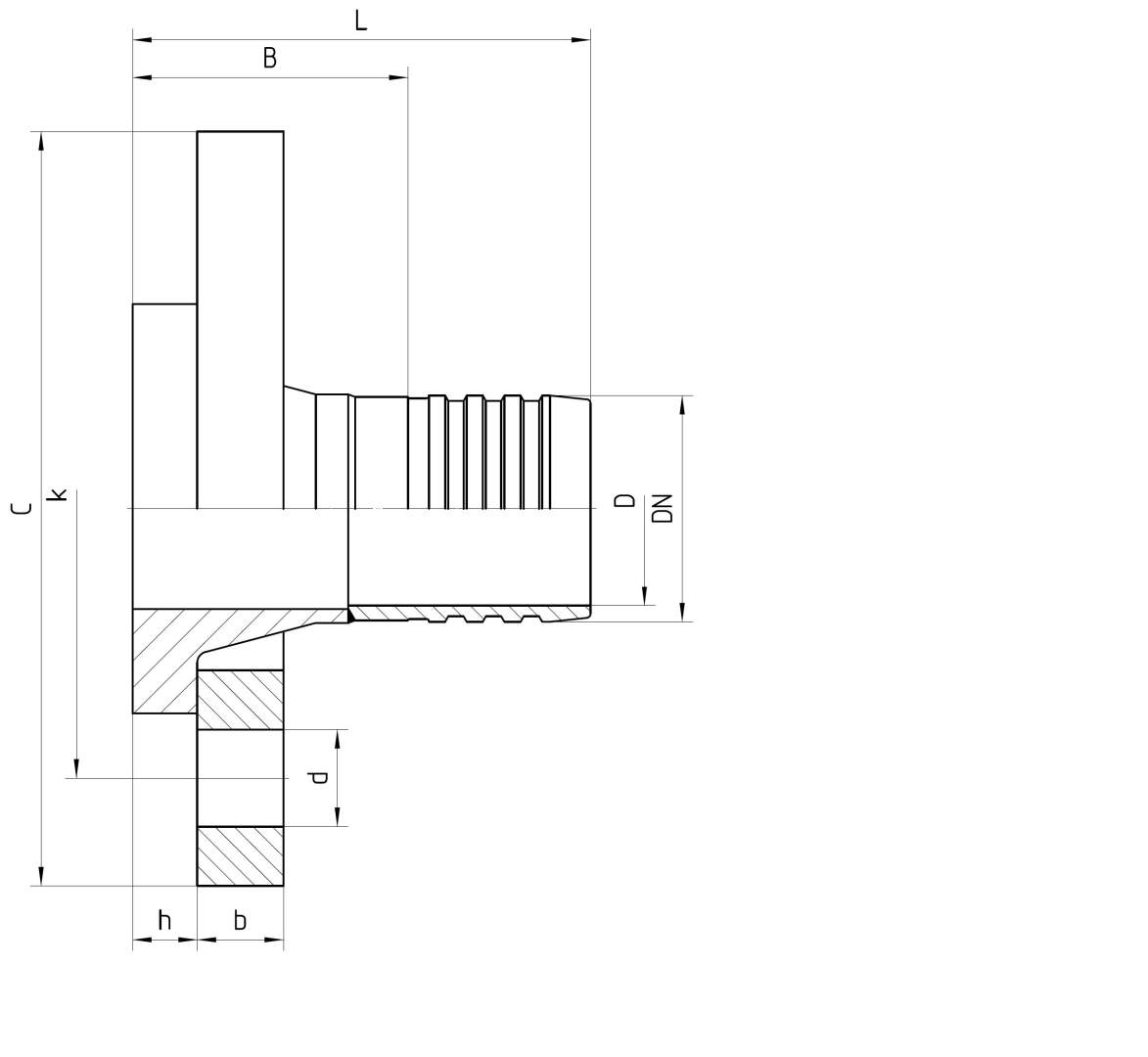

| Order no. | DN in mm | DN DIN-Flange | C in mm | b in mm | k in mm | number of screws | screws T | d in mm | h in mm | D in mm | B±3 in mm | L±3 in mm | Order No. | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.434-12-12 | 19 | 20 | 105 | 14 (16) | 75 | 4 | M12 | 14 | 12 (14) | 14 | 60 | 140 | 17.434K-12-12 | 56 | 100 |
| 17.434-16-12 | 19 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 14 | 90 | 170 | 17.434K-16-12 | 86 | 130 |
| 17.434-12-16 | 25 | 20 | 105 | 14 (16) | 75 | 4 | M12 | 14 | 12 (14) | 19 | 60 | 140 | 17.434K-12-16 | 56 | 100 |
| 17.434-16-16 | 25 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 19 | 60 | 140 | 17.434K-16-16 | 56 | 100 |
| 17.434-20-16 | 25 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 19 | 60 (62) | 140 (142) | 17.434K-20-16 | 56 (58) | 100 (102) |
| 17.434-12-20 | 31 | 20 | 105 | 14 (16) | 75 | 4 | M12 | 14 | 12 (14) | 26 | 60 | 140 | 17.434K-12-20 | 56 | 100 |
| 17.434-16-20 | 31 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 26 | 60 | 140 | 17.434K-16-20 | 56 | 100 |
| 17.434-20-20 | 31 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 26 | 60 (62) | 140 (142) | 17.434K-20-20 | 56 (58) | 100 (102) |
| 17.434-24-20 | 31 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 26 | 60 (65) | 140 (145) | 17.434K-24-20 | 56 (61) | 100 (105) |
| 17.434-12-24 | 38 | 20 | 105 | 14 (16) | 75 | 4 | M12 | 14 | 12 (14) | 32 | 90 | 170 | 17.434K-12-24 | 86 | 130 |
| 17.434-16-24 | 38 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 32 | 90 | 170 | 17.434K-16-24 | 86 | 130 |
| 17.434-20-24 | 38 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 32 | 60 (62) | 140 (142) | 17.434K-20-24 | 56 (58) | 100 (102) |
| 17.434-24-24 | 38 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 32 | 60 (65) | 140 (145) | 17.434K-24-24 | 56 (61) | 100 (105) |
| 17.434-32-24 | 38 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 32 | 80 | 160 | 17.434K-32-24 | 76 | 120 |
| 17.434-16-32 | 51 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 44 | 98 | 190 | 17.434K-16-32 | 105 | 150 |
| 17.434-20-32 | 51 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 44 | 68 (70) | 160 (162) | 17.434K-20-32 | 75 (77) | 120 (122) |
| 17.434-24-32 | 51 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 44 | 53 (58) | 145 (150) | 17.434K-24-32 | 60 (65) | 105 (110) |
| 17.434-32-32 | 51 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 44 | 63 | 155 | 17.434K-32-32 | 65 | 110 |
| 17.434-40-32 | 51 | 65 | 185 | 16 (20) | 145 | 4 (8) | M16 | 18 | 14 (16) | 44 | 68 | 160 | 17.434K-40-32 | 85 | 130 |
| 17.434-16-36 | 60 | 25 | 115 | 16 | 85 | 4 | M12 | 14 | 12 (14) | 53 | 93 | 185 | 17.434K-16-36 | 100 | 145 |
| 17.434-20-36 | 60 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 53 | 78 (80) | 170 (172) | 17.434K-20-36 | 85 (87) | 130 (132) |
| 17.434-24-36 | 60 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 53 | 68 (73) | 160 (165) | 17.434K-24-36 | 75 (80) | 120 (125) |
| 17.434-32-36 | 60 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 53 | 58 | 150 | 17.434K-32-36 | 65 | 110 |
| 17.434-40-36 | 60 | 65 | 185 | 16 (20) | 145 | 4 (8) | M16 | 18 | 14 (16) | 53 | 73 | 165 | 17.434K-40-36 | 100 | 145 |
| 17.434-48-36 | 60 | 80 | 200 | 18 (20) | 160 | 8 | M16 | 18 | 16 | 53 | 78 | 170 | 17.434K-48-36 | 85 | 130 |
| 17.434-20-48 | 76 | 32 | 140 | 16 (18) | 100 | 4 | M16 | 18 | 12 (14) | 69 | 98 (100) | 190 (192) | 17.434K-20-48 | 105 (107) | 150 (152) |
| 17.434-24-48 | 76 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 69 | 98 (103) | 190 (195) | 17.434K-24-48 | 105 (110) | 150 (155) |
| 17.434-32-48 | 76 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 69 | 73 | 165 | 17.434K-32-48 | 80 | 125 |
| 17.434-40-48 | 76 | 65 | 185 | 16 (20) | 145 | 4 (8) | M16 | 18 | 14 (16) | 69 | 73 | 165 | 17.434K-40-48 | 80 | 125 |
| 17.434-48-48 | 76 | 80 | 200 | 18 (20) | 160 | 8 | M16 | 18 | 16 | 69 | 78 | 170 | 17.434K-48-48 | 85 | 130 |
| 17.434-64-48 | 76 | 100 | 220 | 18 (22) | 180 | 8 | M16 | 18 | 16 (18) | 69 | 98 (100) | 190 (192) | 17.434K-64-48 | 105 (107) | 150 (152) |
| 17.434-24-56 | 90 | 40 | 150 | 16 (18) | 110 | 4 | M16 | 18 | 12 (14) | 82 | 116 (121) | 208 (213) | 17.434K-24-56 | 123 (128) | 168 (173) |
| 17.434-32-56 | 90 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 82 | 121 | 213 | 17.434K-32-56 | 128 | 173 |
| 17.434-40-56 | 90 | 65 | 185 | 16 (20) | 145 | 4 (8) | M16 | 18 | 14 (16) | 82 | 85 | 113 | 17.434K-40-56 | 90 | 135 |
| 17.434-48-56 | 90 | 80 | 200 | 18 (20) | 160 | 8 | M16 | 18 | 16 | 82 | 88 | 180 | 17.434K-48-56 | 95 | 140 |
| 17.434-64-56 | 90 | 100 | 220 | 18 (22) | 180 | 8 | M16 | 18 | 16 (18) | 82 | 86 (88) | 178 (180) | 17.434K-64-56 | 93 (95) | 138 (140) |
| 17.434-32-64 | 102 | 50 | 165 | 16 (20) | 125 | 4 | M16 | 18 | 14 (16) | 94 | 123 | 215 | 17.434K-32-64 | 127 | 175 |
| 17.434-40-64 | 102 | 65 | 185 | 16 (20) | 145 | 4 (8) | M16 | 18 | 14 (16) | 94 | 113 | 205 | 17.434K-40-64 | 117 | 165 |
| 17.434-48-64 | 102 | 80 | 200 | 18 (20) | 160 | 8 | M16 | 18 | 16 | 94 | 76 | 168 | 17.434K-48-64 | 80 | 128 |
| 17.434-64-64 | 102 | 100 | 220 | 18 (22) | 180 | 8 | M16 | 18 | 16 (18) | 94 | 78 (80) | 170 (172) | 17.434K-64-64 | 82 (84) | 130 (132) |
| 17.434-80-64 | 102 | 125 | 250 | 18 (22) | 210 | 8 | M16 | 18 | 18 | 94 | 148 (153) | 240 (245) | 17.434K-80-64 | 152 (157) | 200 (205) |
| 17.434-64-96 | 152 | 100 | 220 | 18 (22) | 180 | 8 | M16 | 18 | 16 (18) | 142 | 215 (217) | 343 (345) | 17.434K-64-96 | 115 (117) | 195 (197) |
| 17.434-80-96 | 152 | 125 | 250 | 18 (22) | 210 | 8 | M16 | 18 | 18 | 142 | 82 (87) | 210 (215) | 17.434K-80-96 | 90 (95) | 170 (175) |
| 17.434-96-96 | 152 | 150 | 285 | 18 (24) | 240 | 8 | M20 | 22 | 18 (20) | 142 | 82 (87) | 210 (215) | 17.434K-96-96 | 77 (82) | 157 (162) |
| 17.434-128-96 | 152 | 200 | 340 | 20 (26) | 295 | 12 | M20 | 22 | 20 | 142 | 184 (191) | 312 (319) | 17.434K-128-96 | 110 (117) | 190 (197) |
