| Connection | Schlaunippel mit Rohr zum Anschweißen |
| Application | 14A / 17A flexible tubes |
| Material | Steel |
| Surface protection | without |

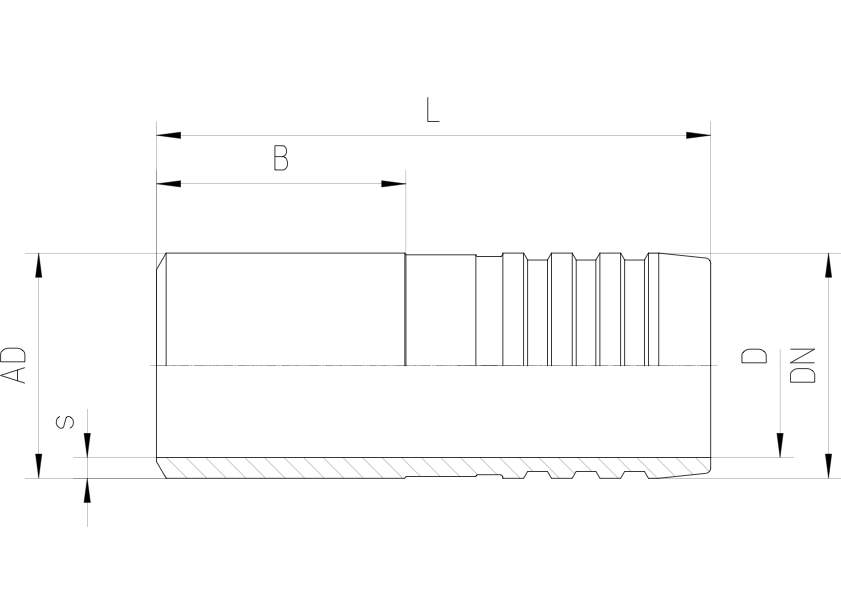

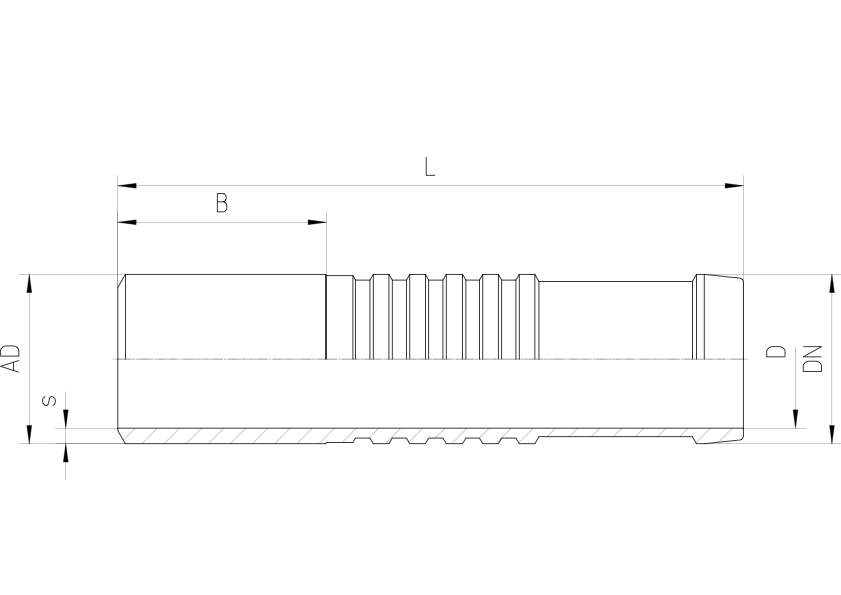

| Order no. | DN in mm | Tube AD x s in mm | D in mm | B±3 in mm | L±3 in mm | Order No. | B±3 in mm | L±3 in mm |
|---|---|---|---|---|---|---|---|---|
| 17.001-12 | 19 | 20,0x3,2 | 14,0 | 40 | 120 | 17.001K-12 | 36 | 80 |
| 17.001-16 | 25 | 26,1x3,1 | 19,0 | 40 | 120 | 17.001K-16 | 36 | 80 |
| 17.001-20 | 31 | 32,5x3,0 | 26,0 | 40 | 120 | 17.001K-20 | 36 | 80 |
| 17.001-24 | 38 | 38,8x3,0 | 32,0 | 40 | 120 | 17.001K-24 | 36 | 80 |
| 17.001-32 | 51 | 52,0x3,75 | 44,5 | 28 | 120 | 17.001K-32 | 45 | 90 |
| 17.001-36 | 60 | 60,3x3,6 | 53,0 | 28 | 120 | 17.001K-36 | 40 | 85 |
| 17.001-48 | 76 | 76,1x4,0 | 69,0 | 48 | 140 | 17.001K-48 | 55 | 100 |
| 17.001-56 | 90 | 88,9x3,6 | 82,0 | 58 | 150 | 17.001K-56 | 55 | 100 |
| 17.001-64 | 102 | 101,6x3,6 | 94,0 | 68 | 160 | 17.001K-64 | 72 | 120 |
| 17.001-96 | 152 | 152,4x5,6 | 142,0 | 32 | 160 | 17.001K-96 | 40 | 120 |
