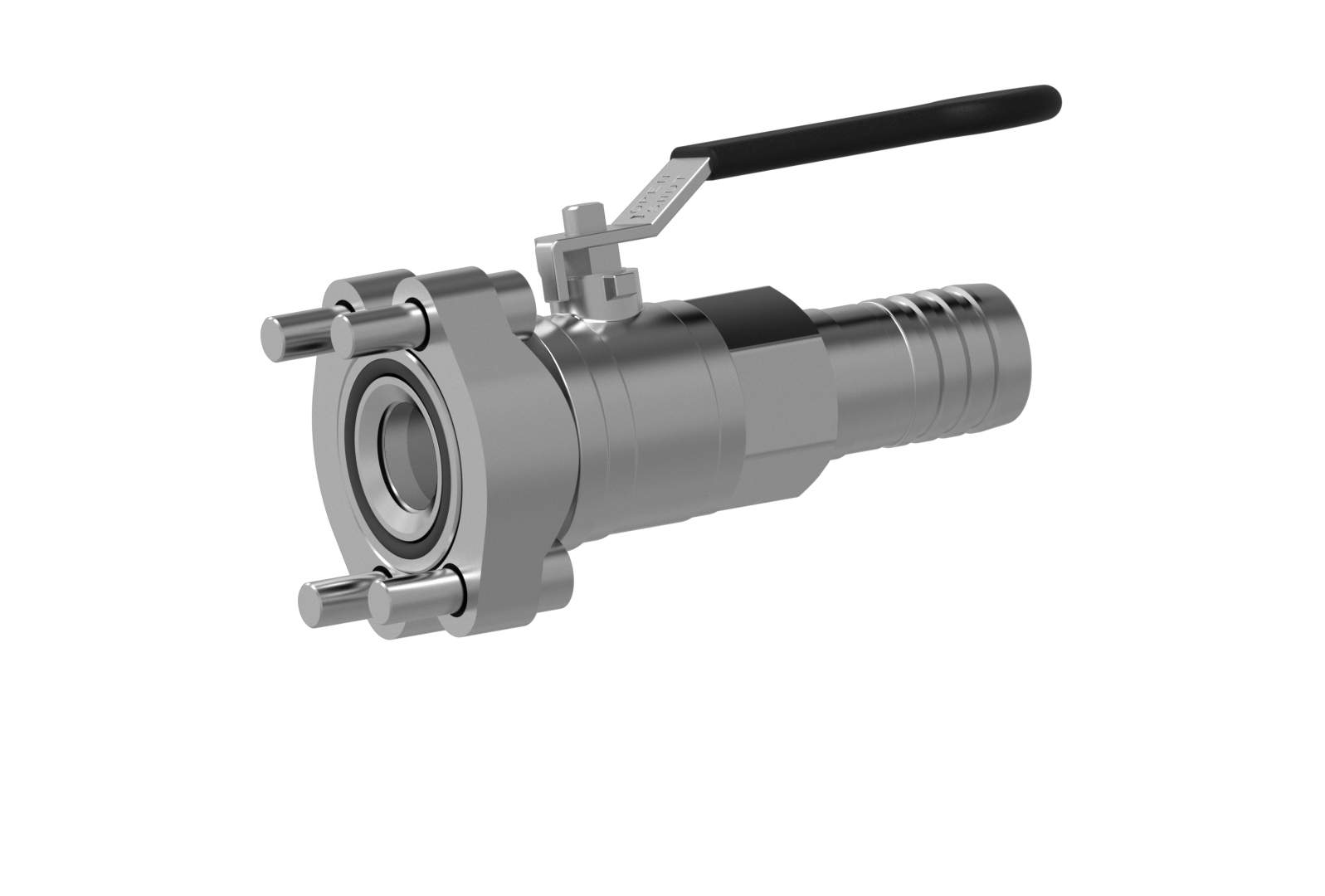

| Material |
Ball valve: casing: nickelized brass; fittings:steel Ball: hard chromium plated brass sealing: teflon |
| Surface protection | DIN 50979 Fe//Zn8//Cn//T2 |
| Note | Extent of supply: incl. full flange, O-ring, screws |

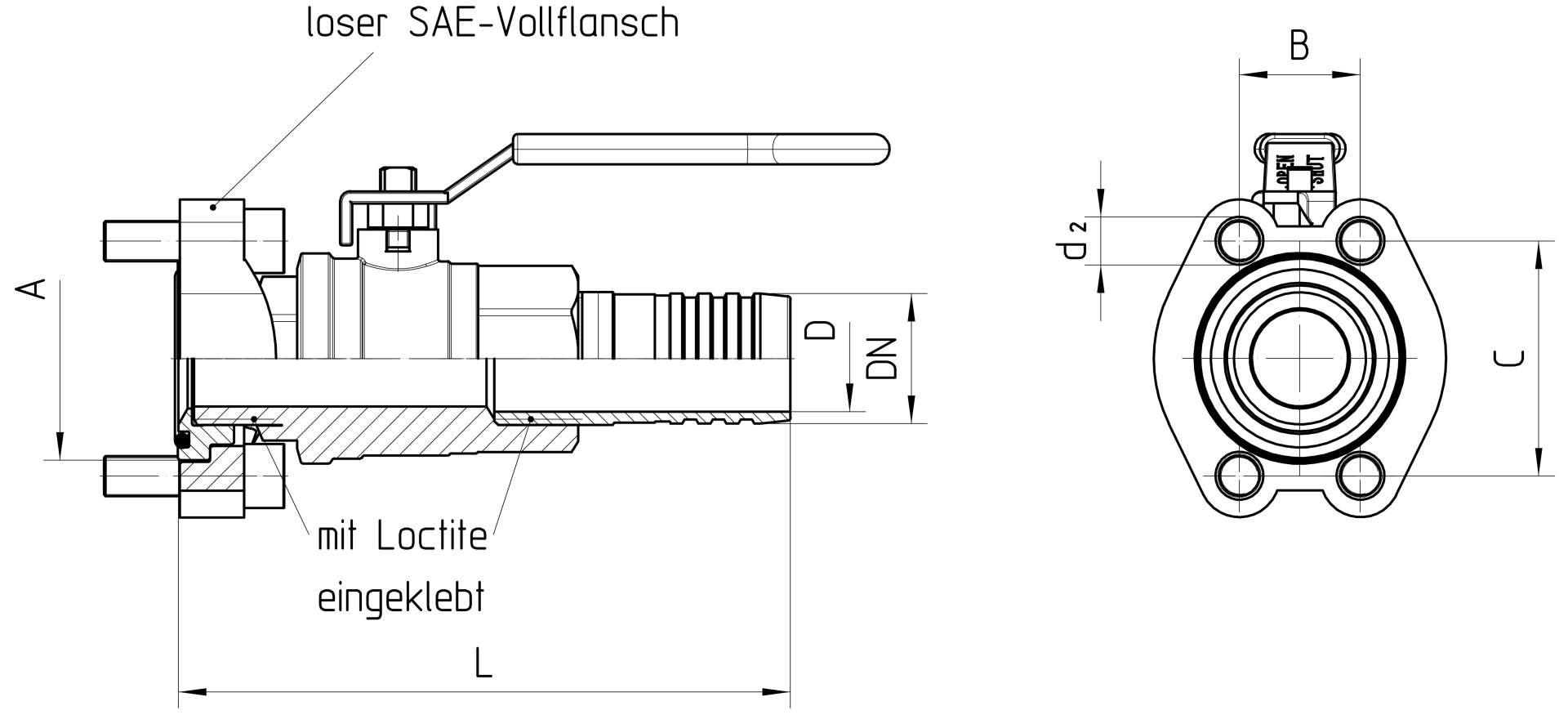

| Order no. | DN in mm | Ball valve in inch | flange in inch | d1 (inside diameter Ball valve) | L±5 in mm | A in mm | B in mm | C in mm | d2 in mm |
|---|---|---|---|---|---|---|---|---|---|
| 33.3/4-16-16 | 25 | 3/4 | 1 | 20 | 140 | 44,45 | 26,2 | 52,4 | 10,5 |
| 33.1-20-20 | 31 | 1 | 1 1/4 | 25 | 155 | 50,8 | 30,2 | 58,7 | 12,0 |
| 33.1 1/4-24-24 | 38 | 1 1/4 | 1 1/2 | 32 | 165 | 60,33 | 35,7 | 69,9 | 13,5 |
| 33.1 1/2-40-32 | 51 | 1 1/2 | 2 1/2 | 38 | 187 | 84,12 | 50,8 | 88,9 | 13,5 |
| 33.2-48-36 | 60 | 2 | 3 | 48 | 200 | 101,6 | 61,9 | 106,4 | 16,8 |
| 33.2 1/2-64-48 | 76 | 2 1/2 | 4 | 64 | 220 | 127,0 | 77,8 | 130,2 | 17,0 |
| 33.3-80-56 | 90 | 3 | 5 | 74 | 245 | 152,4 | 92,1 | 152,4 | 17,0 |
| 33.4-80-64 | 102 | 4 | 5 | 98 | 346 | 152,4 | 92,1 | 152,4 | 17,0 |
